HT Solutions
Industrial & Laboratory Furnaces

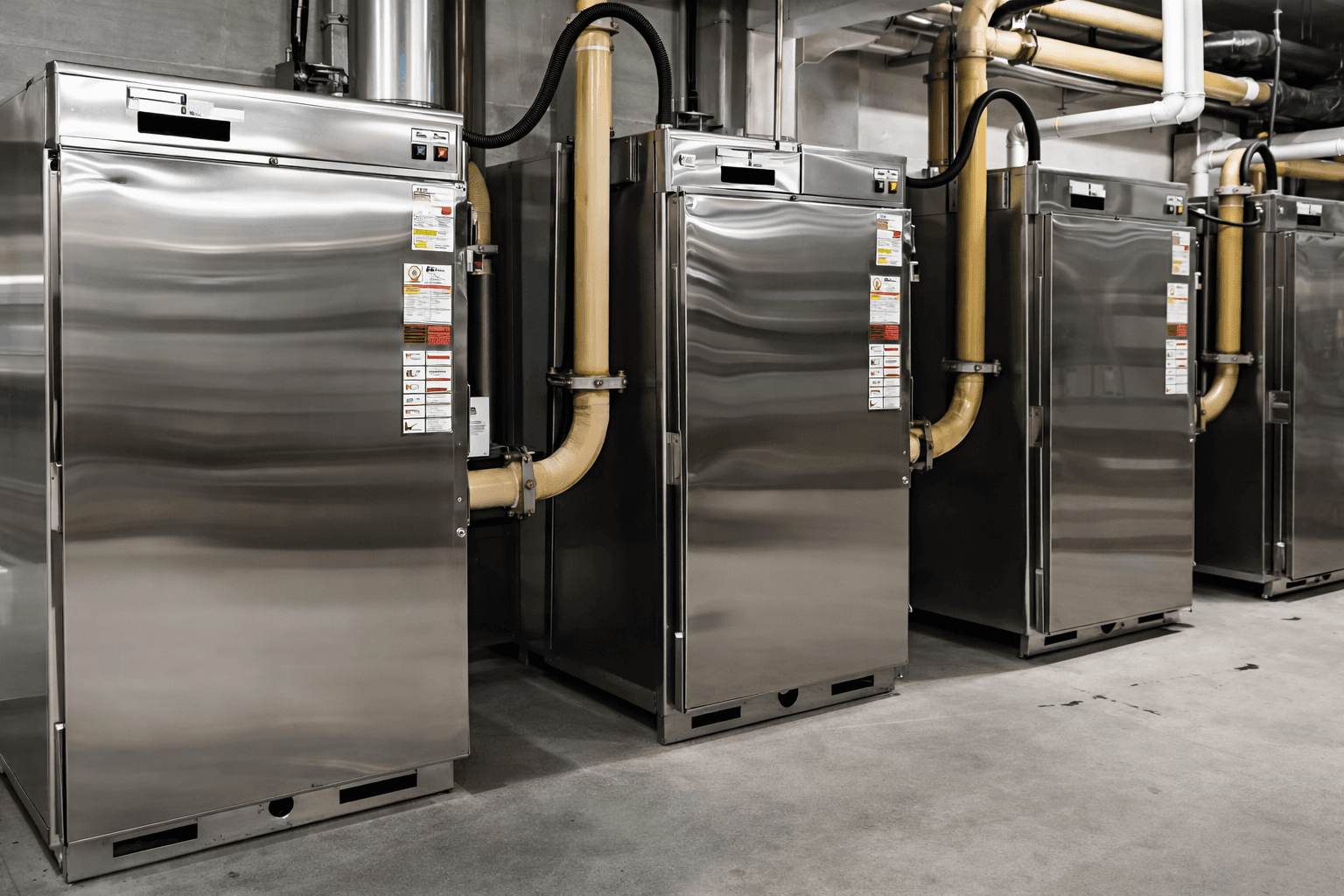

Microwave Furnaces
Microwave furnaces represent a system that combines free radiating heating elements with a microwaves field. Key advantages include greater energy efficiency, faster sample heating, more uniform heating and improves material properties.
| Heating System | Microwave By Magnetron |
| Power Rating | 2.45 GHz with 900W each x 2 |
| Operation | Single Phase/AC |
| Power Output | Two magnetrons with total 1.8KW |
| Maximum Temperature | 1200°C Max |
| Normal Working Temperature | 1100°C |
| Rate of Heating | Programmable |
Laboratory Furnaces
Microwave furnaces represent a system that combines free radiating heating elements with a microwaves field. Key advantages include greater energy efficiency, faster sample heating, more uniform heating and improves material properties.
Laboratory Furnaces
- Hight Temperature Furnace
- Muffle Furnace
- Split Tube Furnace
- Tubular Furnaces
Bottom loading furnaces are designed for uniform thermal distribution inside the chamber, easy loading and unloading of the sample with help of lifting arrangement. Bottom loading furnaces are ideal to achieve a variety of heating-cooling cycles without sacrificing temperature uniformity or product quality.
These furnaces are well suited for calcining, firing and sintering oxide ceramic parts (i.e., alumina, zirconia), technical ceramics, co-fired substrate materials, capacitors, filters, thermistors, ferrites.
The high-temperature bottom loading furnaces are additionally equipped with a drying as well as a forced cooling function. For residual drying, the oven remains open gapwise during heating up to a defined temperature and thus ensures reliable removal of moisture.
For accelerated cooling, the furnace is automatically opened step by step under program control.
| Maximum Operating Temperature | 1200/1400/1600/1800°C |
| Temperature Controller | Microprocessor based PID controller |
| Operation | Single Phase/AC |
| Bottom Lifting Arrangement | Bottom lifting plate fitted with DC motor ensure smooth lifting & lowering. |

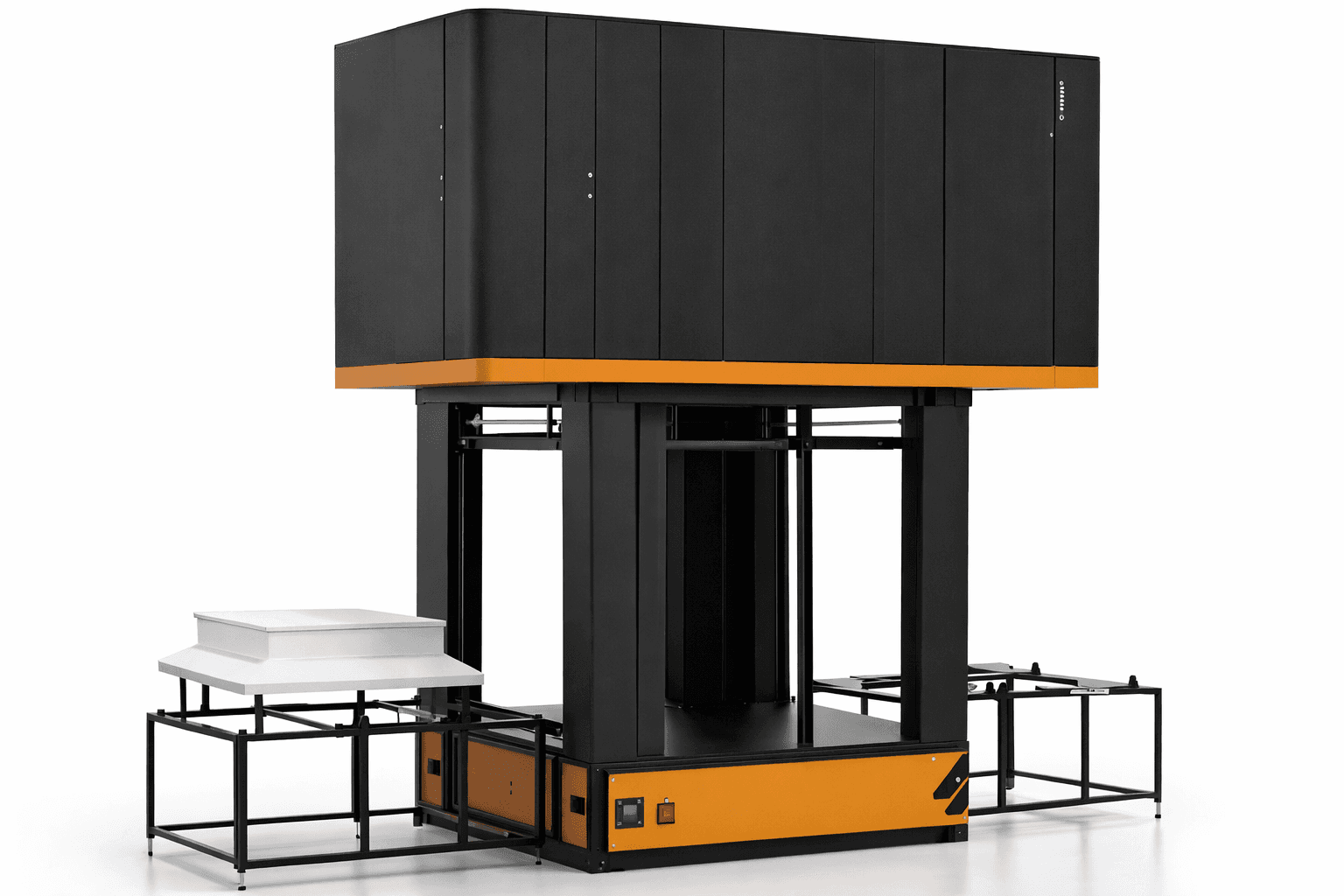

Industrial Furnaces
Industrial Bottom Loading Furnace is suitable for 1600°C as well as 1800°C application. The Industrial Bottom Loading Furnace is a kind of user friendly operating system that comes with smooth bottom lifting arrangement.
Industrial Furnaces
The Industrial Bottom Loading is widely used for firing and sintering of advanced ceramics and high temperature glass melting application.
Industrial Bottom Loading Furnace offers high temperature accuracy in a range of ±1°C
| Maximum Temperature | 1200 /1400°C/1600°C/1800°C |
| Insulation | Multiple Layers of High Temperature Fiber Insulation Boards Ensure Minimum Heat Loss |
| Bottom Lifting Arrangement | Bottom Lifting Plate Fitted with Dc Motor Ensures Smooth Lifting & Lowering |
| Bottom Lifting Arrangement | Bottom Lifting Plate Fitted with Dc Motor Ensures Smooth Lifting & Lowering |
