Cryo Bearing Stages
All-round linear positioners with spring-loaded roller bearing guides, which can be easily combined to create multiple axes positioning systems.
Product description

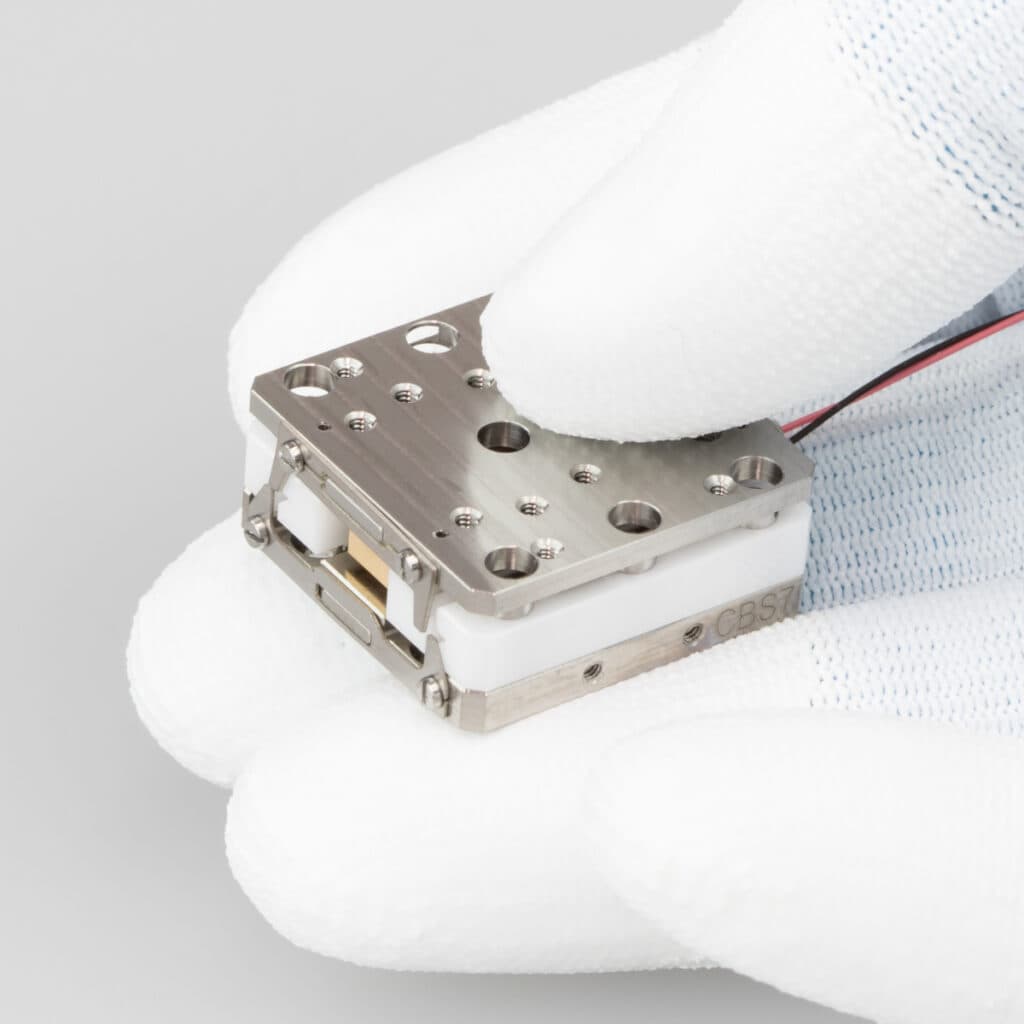

The Cryo Bearing Stage (CBS) is a non-magnetic and robust linear stage for all-round applications in a cryo-vacuum, which will run both horizontally and vertically. The combination of long range stepping motion followed by short range scanning offers sub-nm positioning over the full range. The ceramic roller guides are spring preloaded, ensuring play free and smooth running from room temperature to cryogenic temperatures.
Key features
- Non-magnetic
- For horizontal and vertical motion
- Spring preloaded roller guides; play free

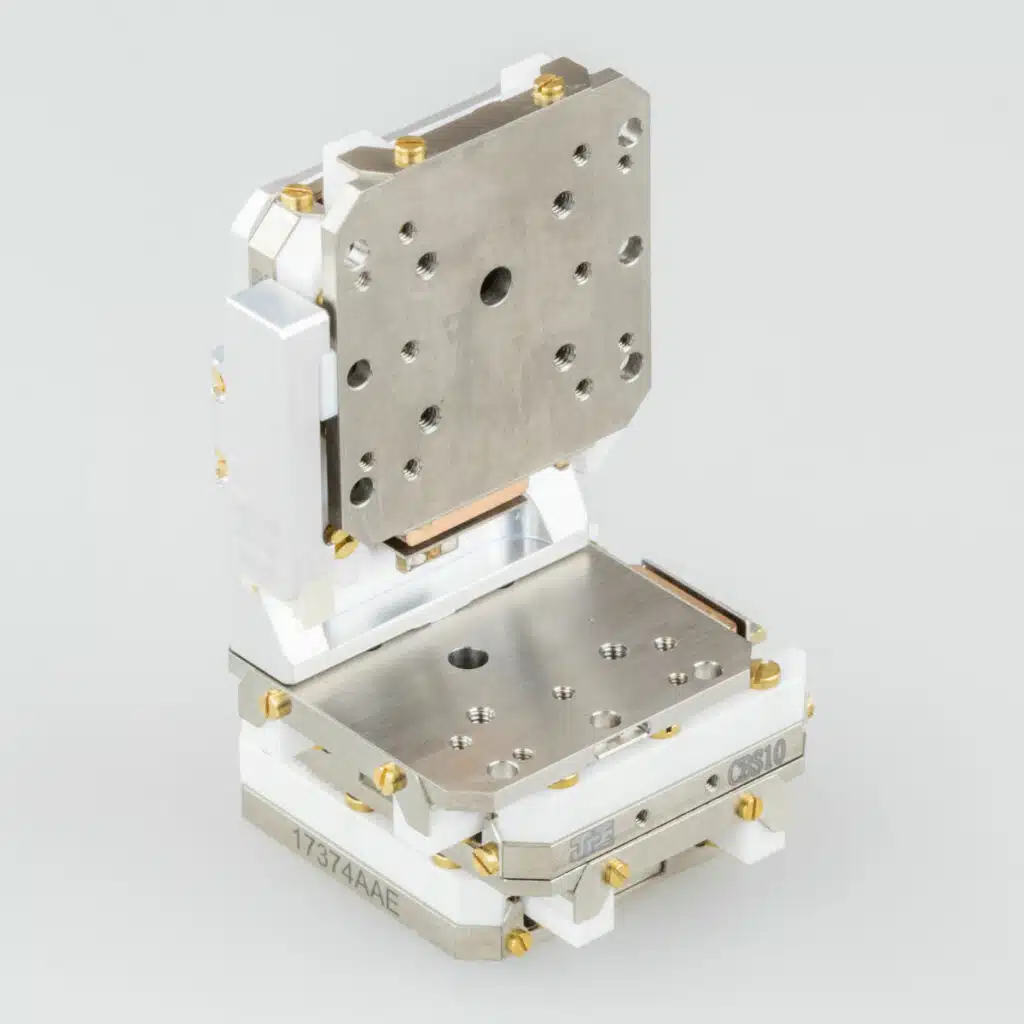

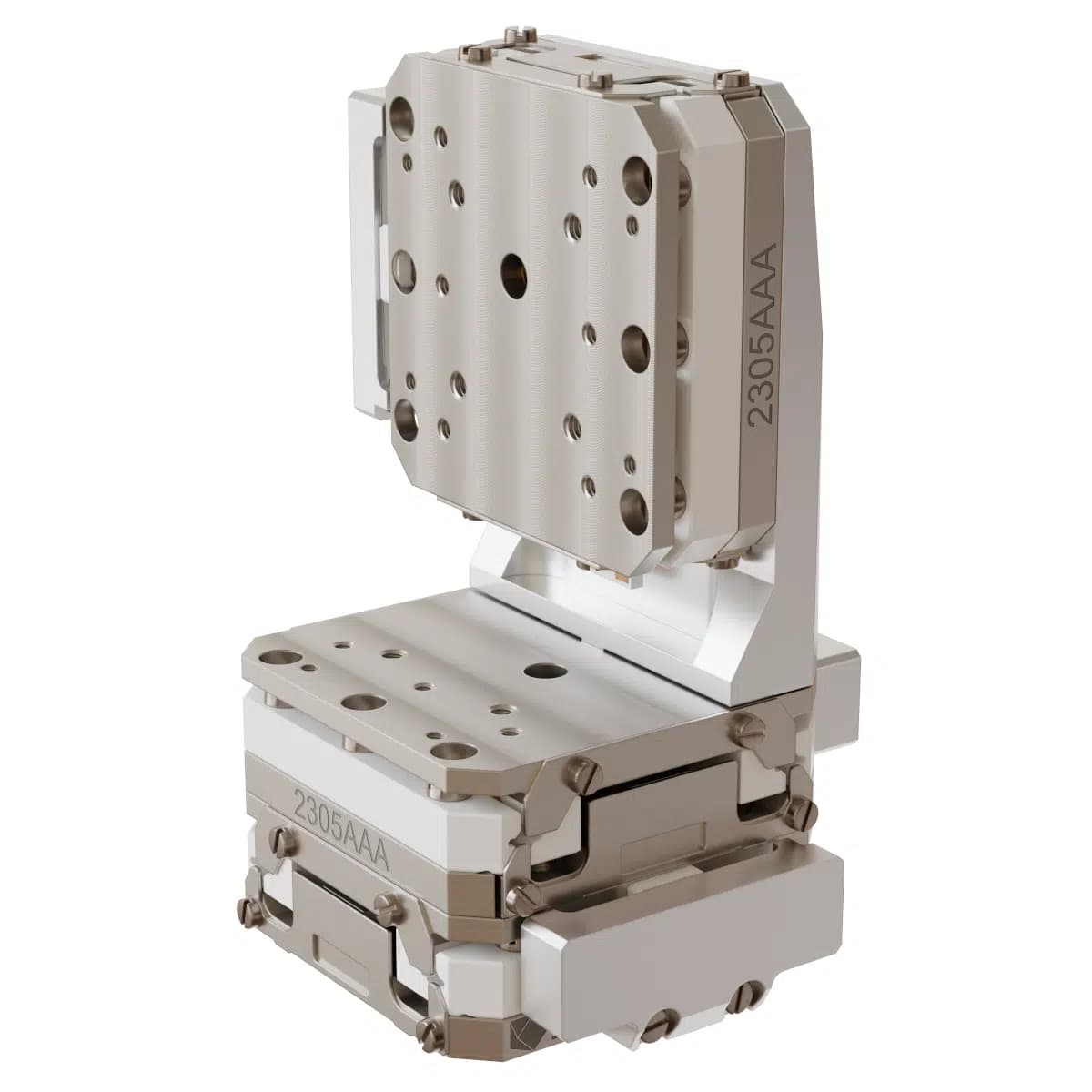

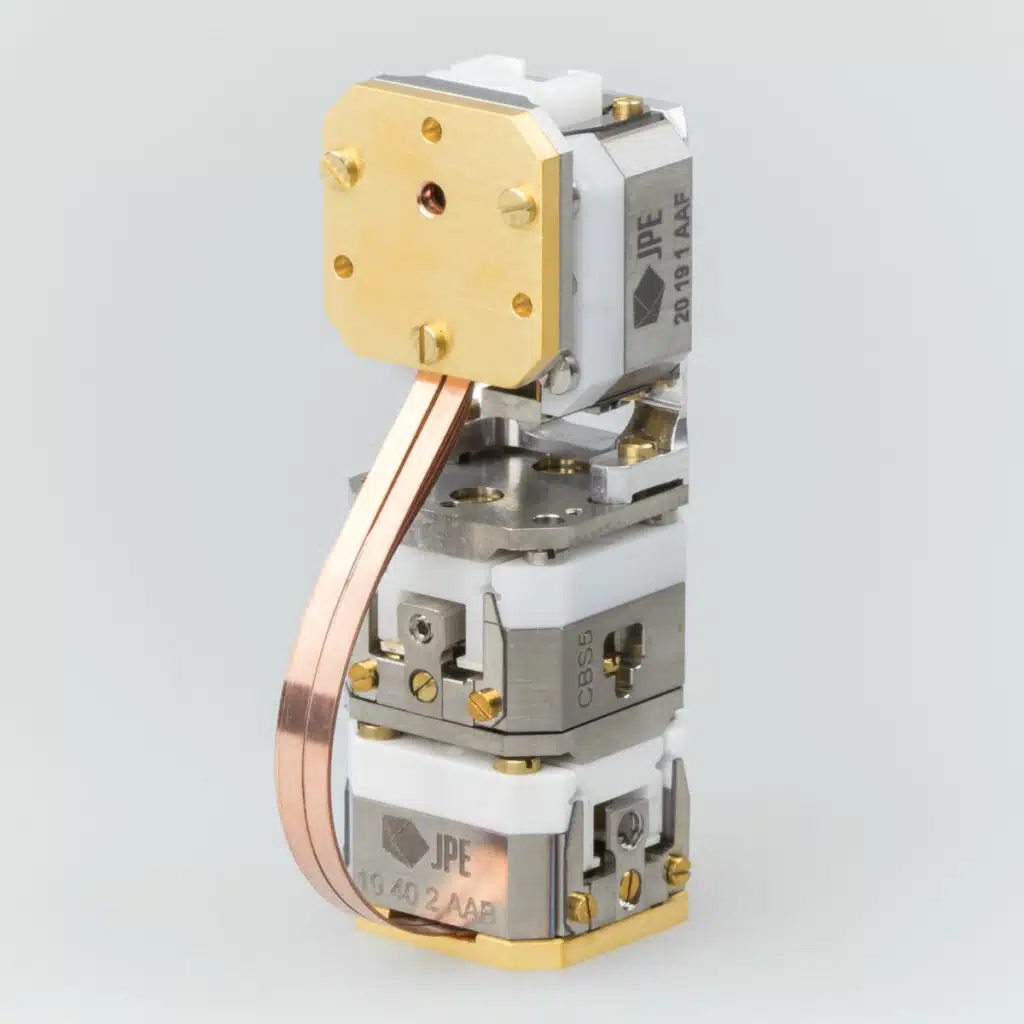

- xyz configurable
- 20 mK to 375K, vacuum compatible
- Compact and robust design
- Integrated scanner functionality
- Position feedback option -RLS
- Ceramic roller guide
Model datasheets
Customer Insights

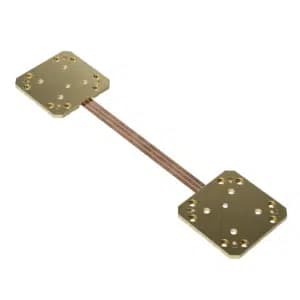

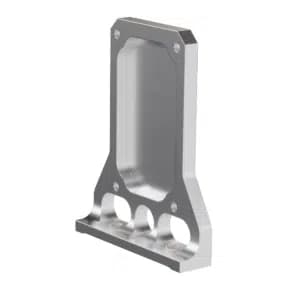

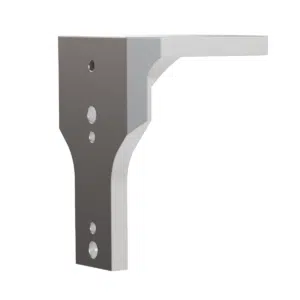

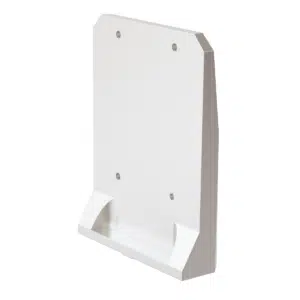

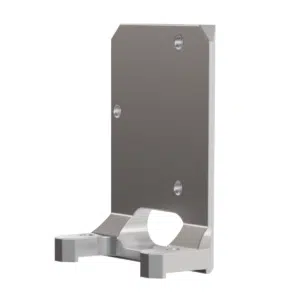

Accessories
Controller

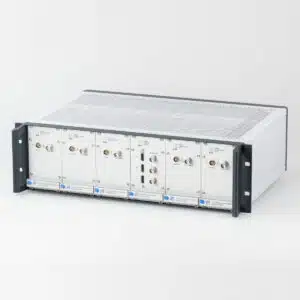

Cryo Positioning Systems Controller
Videos
Animation-temperature-effect-on-CBS
CBS5HF_200gr
CBS10-HF Lifting 300 grams @ 4K
Cryo Bearing Stage (CBS) - Linear stage for allround applications in vacuum and cryo
