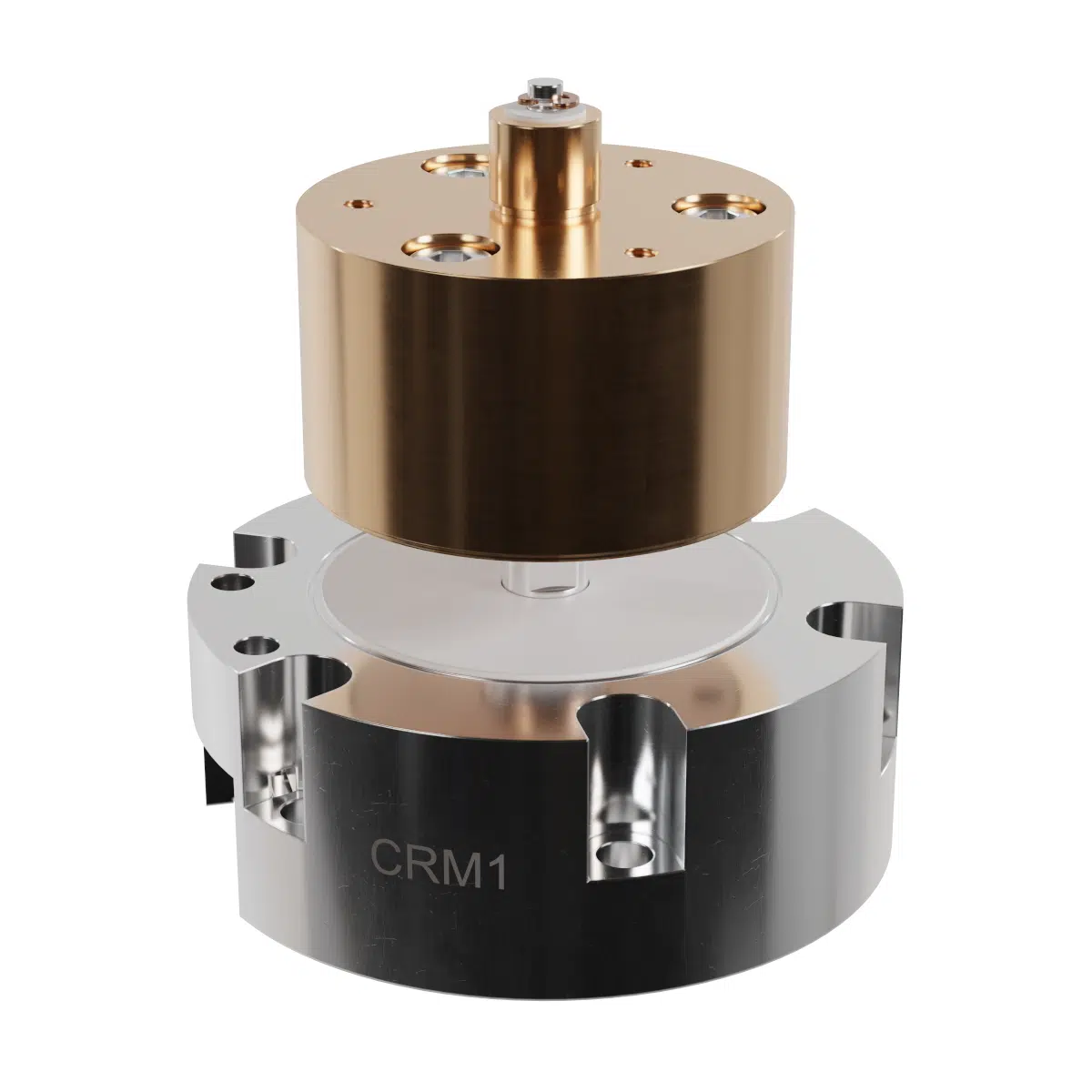

Cryo Rotary Motor
High torque rotational motion with endless encoder option.
Product description
The Cryo Rotary Motor (CRM) is a rotational drive with high torque output. An optical encoder can be fitted for closed loop control. In contrast to typical resistive based encoders it has no blind spots and can measure over 360 angular degrees. The moving parts are made out of non-magnetic phosphor bronze to minimize interaction with external magnetic fields.
Key features
- Endless rotation
- Integrated scanner functionality
- High torque output
- Compact and robust design
- 20 mK to 375K, vacuum compatible
- Materials: stainless steel, phosphor bronze
- Non-magnetic moving parts
- Position feedback option -COE
- COE has no blind spots, 360 degrees range
Cryo Rotary Motor (CRM) - High torque rotational drive for cryogenic applications
Model datasheets
Accessories
Controller

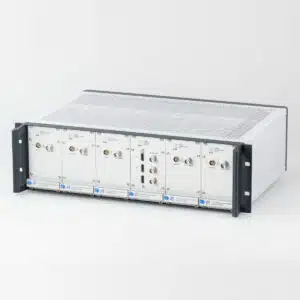

Cryo Positioning Systems Controller
