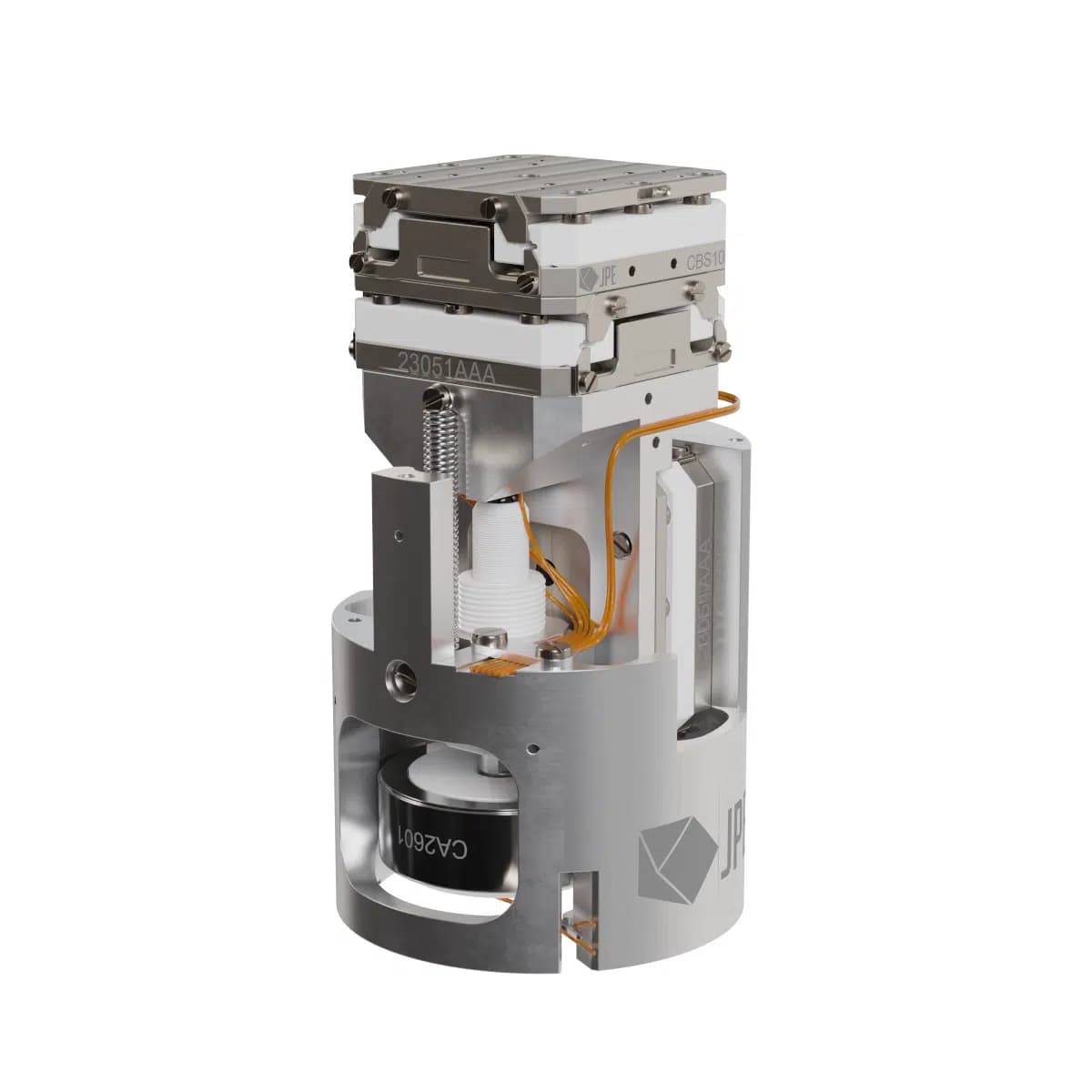

Cryo Stage 02
Plug and play orthogonal xyz motion with high lifting capacity.
Product description
The Cryo Stage 02 (CS02) offers orthogonal xyz positioning with high load capacity in a compact and robust package. It combines two CBS positioners for xy motion with a CLA positioner for vertical motion. The latter allows the CS02 to take loads up to 1kg. The detachable OFHC reference frame (for CS021 only) offers users a rigid and stationary interface to attach for instance probes or optics close to the moving table.
Key features
- Orthogonal xyz motion
- 1kg lifting capacity
- Non-magnetic (on request)
- 20 mK to 375K, vacuum compatible
- Position feedback option -RLS
- Scanning functionality incorporated
- Gold plated OFHC reference frame, accessory
- (CS022) Fits a 30 mm bore

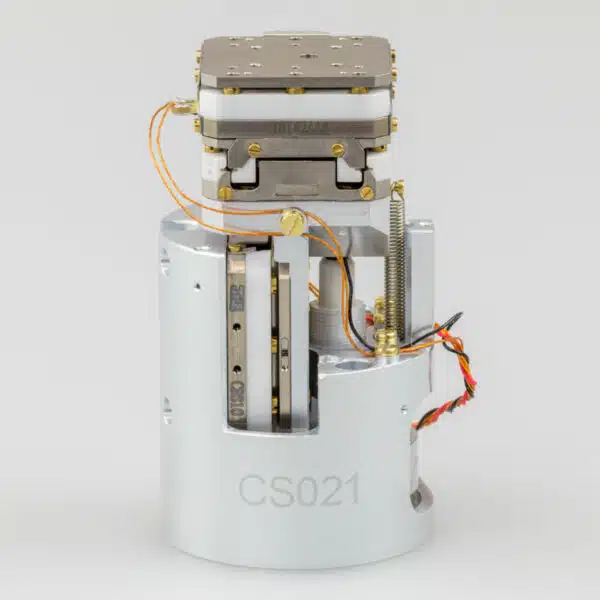

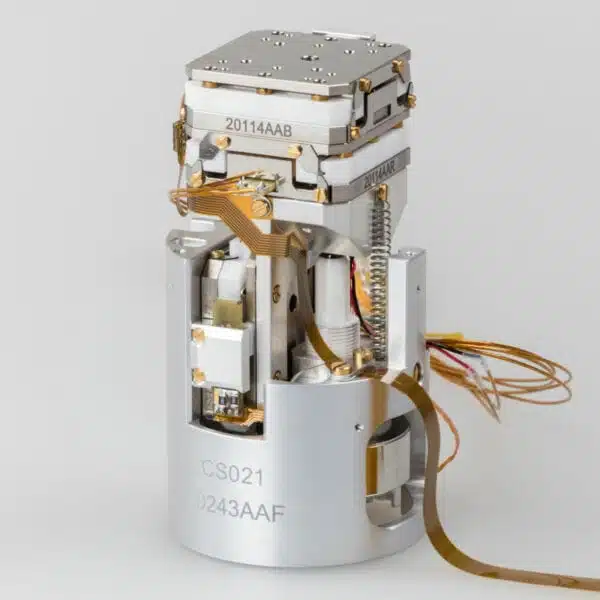

Cryo Stage 021 (CS021)
Model datasheets
Accessories
Controller

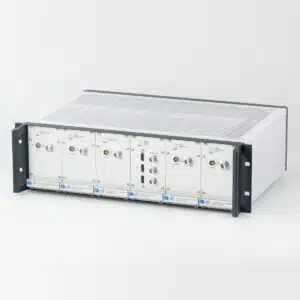

Cryo Positioning Systems Controller
