DX-2012F Multi-dimensional Magnetic Field Testing System
Fully automatic multi-dimensional magnetic field measurement system for high-precision AC and DC 3D magnetic field mapping and analysis.
Product Overview
The DX-2012F Multi-dimensional Magnetic Field Testing System is a high-precision fully automatic digital magnetic measurement platform developed by Dexinmag.
The system can test the three-dimensional magnetic field distribution of AC and DC magnetic fields in any spatial configuration with very high precision. It can measure and analyse:
- 3D magnetic field distribution
- Surface magnetic structures of various shapes
- Uniform magnetic field distribution
- Multi-pole magnetic rings
- N/S magnetic pole distribution
- Motor magnetic field distribution
- Superconducting magnetic field
- Magnetic resonance imaging (MRI) magnetic field
Measurement results can be converted into graphical visualisations, stored as digital data and exported for reporting and printing.
This system is widely used for magnetic research and testing of AC and DC magnetic fields and has been adopted by many aerospace, military and scientific research institutions worldwide.
Key Characteristics
Wide Measurement Range
- Space measurement range: 200 mm × 200 mm × 200 mm (X, Y, Z)
- Customisable scanning range based on user requirements
- Supports three-axis movement and optional 5-axis platform configuration
Mechanical performance:
- Translation resolution: 0.00039 mm
- Position accuracy: 0.01 mm
- Repeat positioning accuracy: < 0.005 mm
Rotation platform performance:
- Rotation resolution: < 0.0002°
- Rotation positioning accuracy: 0.01°
- Repeat positioning accuracy: < 0.005°
Motion control:
- Movement speed adjustable in 2–64 speed levels
This enables high-resolution spatial magnetic field distribution measurement.
High Measurement Accuracy
The system uses a high-precision digital Gauss meter combined with micro Hall probes.
Probe types:
- One-dimensional probe: Φ0.5 mm
- Two-dimensional probe: Φ1.2 mm
- Three-dimensional probe: Φ1.2 mm
Measurement precision:
- One-dimensional measurement accuracy: ±0.05% of reading (±0.005 range)
- Three-dimensional measurement accuracy: ±0.10% of reading (±0.005 range)
Automation and Digital Measurement
The system operates through computer-controlled real-time data acquisition and motion control.
Features include:
- Fully automated measurement workflow
- Automatic data acquisition and storage
- User-defined measurement parameters
- Automatic generation of 1D, 2D and 3D magnetic field visualisations
Measurement data is stored in database format (Access compatible) and charts can be exported or printed.
Flexible System Configuration
The system supports flexible combinations of measurement hardware:
- Three-axis translation platform
- Optional rotation platform
- Multi-axis measurement configuration
These combinations allow measurement of magnetic fields in complex structures and geometries. The system software integrates:
- Motion control
- Data acquisition
- Measurement automation
Additional software functions can be customised according to application requirements.
Certification:
- Gauss meter calibrated by National Institute of Metrology China
- Software registered by CPCC (Copyright Protection Center of China)

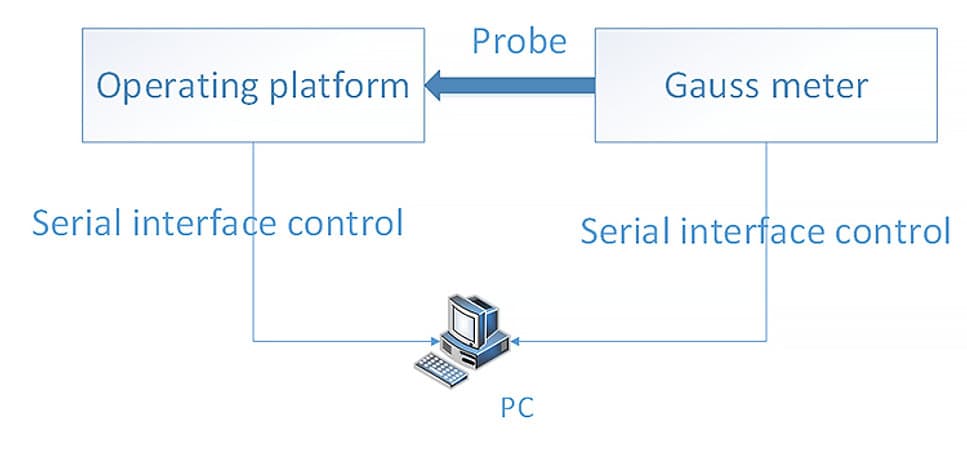

System Configuration
The system includes:
- Industrial PC with control software
- High-precision Gauss meter (1D or 3D)
- Hall probe compatible with the Gauss meter
- Multi-axis displacement control unit
- Displacement platform controller
The system consists of two main parts:
Data Acquisition System
- Magnetic field data acquisition
- Hall probe measurement
- Real-time data transmission to PC
Displacement Control System
- Multi-axis movement control
- Motion trajectory and scanning path control
- Automated scanning of measurement points
The motion controller receives commands from the PC software and drives the displacement platform to move according to predefined scanning paths.
CNC Multi-Axis Platform
The translation and rotation axes can be configured based on measurement requirements.
| Direction | Panning Range | Resolution |
|---|---|---|
| X Axis | 50 mm – 4000 mm | 0.00039 mm |
| Y Axis | 50 mm – 2000 mm | 0.00039 mm |
| Z Axis | 50 mm – 2000 mm | 0.00039 mm |
| T (Rotary table) | 360° | 0.0002° |
| θz (Rotary table) | 360° | 0.0002° |
High-Precision Digital Gauss Meter
| Model | Measurement Range | Accuracy |
|---|---|---|
| DX-360 | 10 nT – 30 T | ±0.15% ±0.005 range |
| DX-210 | 10 nT – 30 T | ±0.10% ±0.005 range |
| DX-180 | 10 nT – 30 T | ±0.05% ±0.005 range |
| DX-160 | 100 nT – 3 T | ±0.20% ±0.005 range |
