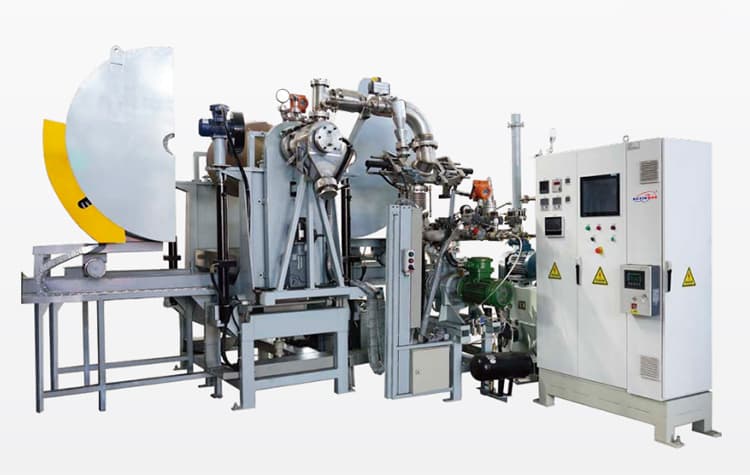

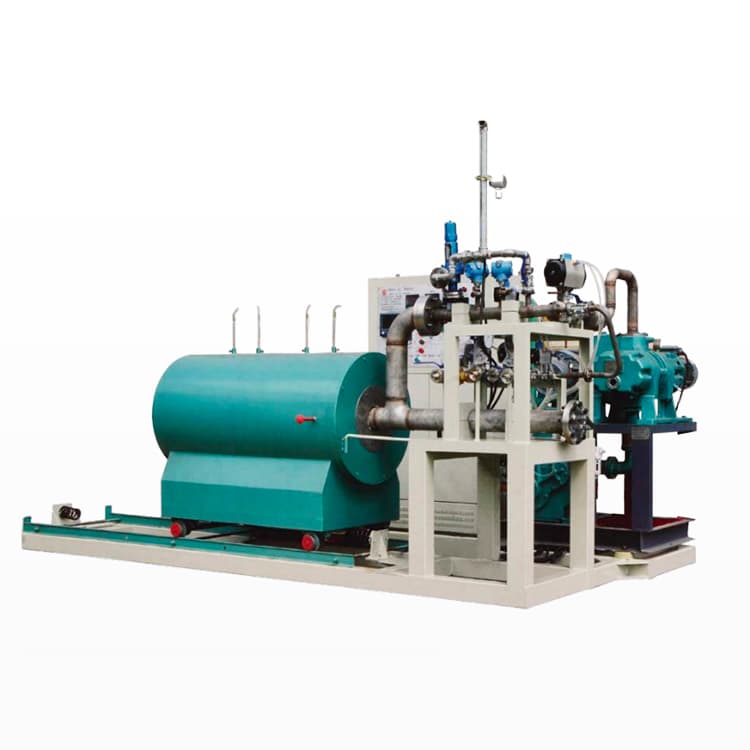

Experimental Hydrogen Decrepitation Furnace

Experimental Hydrogen Decrepitation Furnace is an experimental hydrogen crushing furnace designed for processing a variety of materials, primarily for hydrogenation and dehydrogenation processes. It features an externally heated straight-tube reaction chamber capable of accommodating up to 10 kg of material. The furnace is equipped with a comprehensive control system for precise temperature, vacuum, and gas flow management, ensuring efficient and safe operation.

Core Features

1. Advanced Heating System: Utilizes a round tube-type hollow heating furnace with resistance wire heating, capable of reaching a maximum operating temperature of 600°C within 60 minutes.
2. High Vacuum Capability: Achieves an ultimate vacuum of 1×10-1 Pa (in cold, empty state) and maintains a low pressure rise rate, ensuring optimal processing conditions.
3. Precise Temperature Control: Offers temperature uniformity of ±3°C within a 500 mm zone, with PID controllable silicon temperature regulation for accurate process control.
4. Automated Control System: Features PLC programming for interlocking protection, computer-controlled temperature, and automated processes including leak detection, hydrogen absorption, dehydrogenation, and cooling.
5. Safe and Reliable Design: Equipped with multiple safety features including over-temperature shut-off, over-pressure alarm, water failure shutdown protection, and hydrogen leak detection.

Advantage

1. Versatility: Suitable for processing a range of materials, including coarse-broken particles and cast pieces, with specific oxygen and nitrogen content limits.
2. Efficiency: Optimized for short processing cycles, with a typical work cycle of no more than 12 hours for normal neodymium-iron-boron material.
3. Automation: Fully automated processes reduce manual intervention, enhancing safety and repeatability.
4. High-Quality Construction: Built with durable materials and advanced technology to ensure long-term reliability and precision.

Technical Parameters

1. Type: Externally heated straight-tube reaction chamber.
2. Loading Capacity: 10 kg (for material with particle size < 5 mm or cast pieces up to 30 mm, with oxygen ≤ 300 ppm and nitrogen ≤ 100 ppm).
3. Maximum Operating Temperature: 600°C.
4. Ultimate Vacuum: 1×10-1 Pa (empty, cold state).
5. Pressure Rise Rate: ≤ 0.67 Pa·m³/h (empty, cold state).
6. Pumping Speed: Reduces system pressure from 0.1 MPa to 10-1 Pa in ≤ 30 minutes with a full load.
7. Heating Rate: ≤ 60 minutes to reach 600°C from cold (empty furnace).
8. Temperature Uniformity: ±3°C within 500 mm.
9. Uniform Heating Zone Size: 600 mm.
10. Total Power: 30 kW.
11. Cooling Rate: ≤ 3 hours to cool from 600°C to 100°C (empty furnace).
12. Maximum Charging Pressure: 0.098 MPa (98 kPa).
13. Gas Flow Control: 0-10 L/min (H2 mass flow controller).
