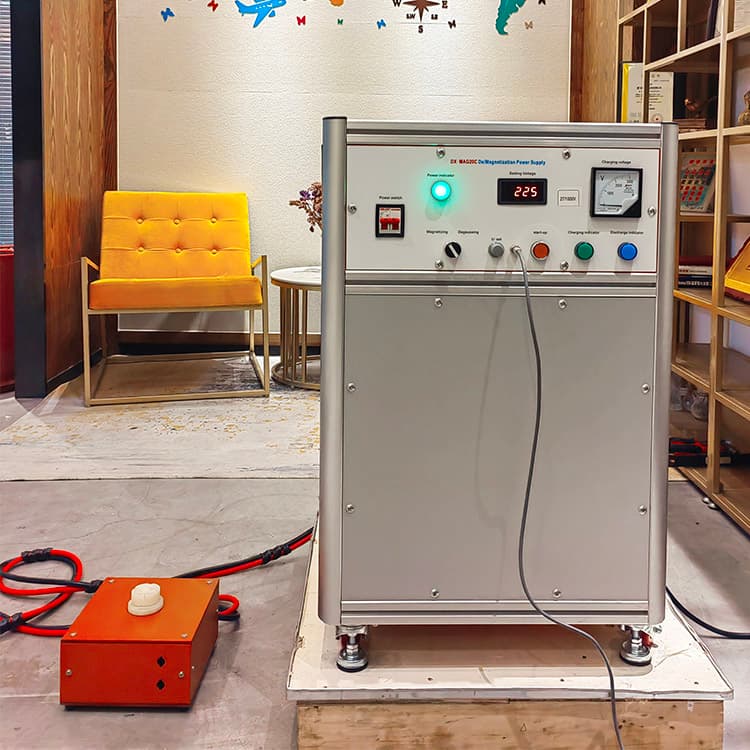

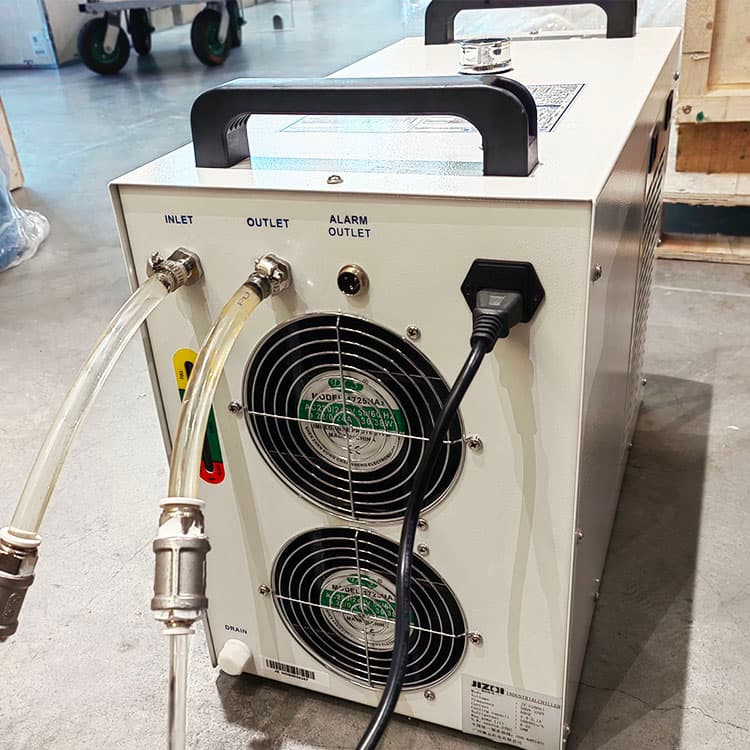

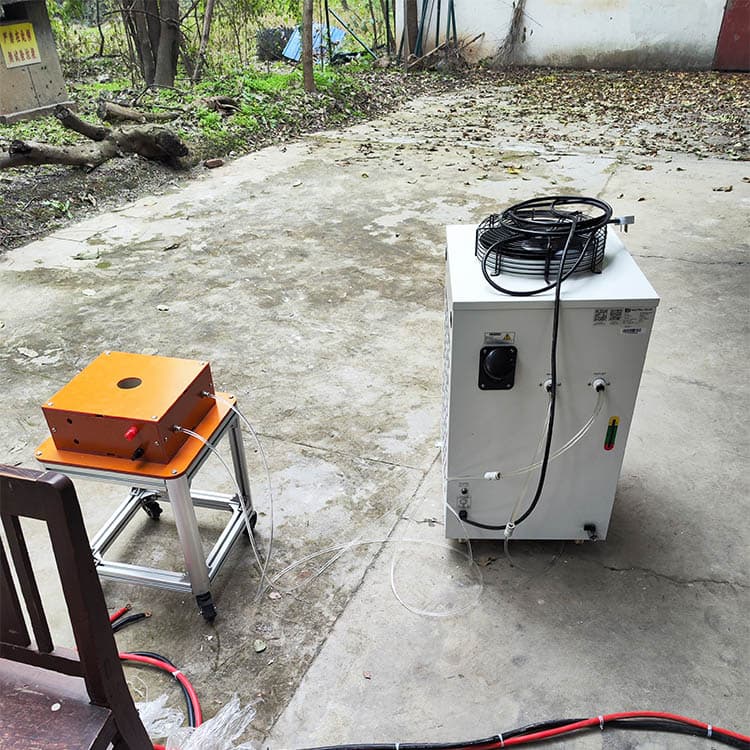

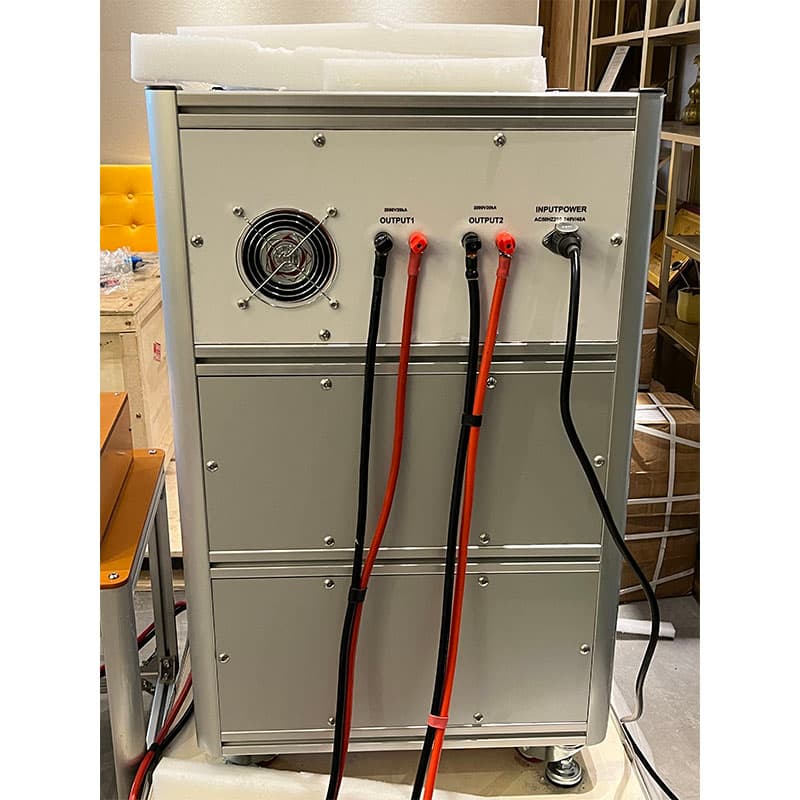

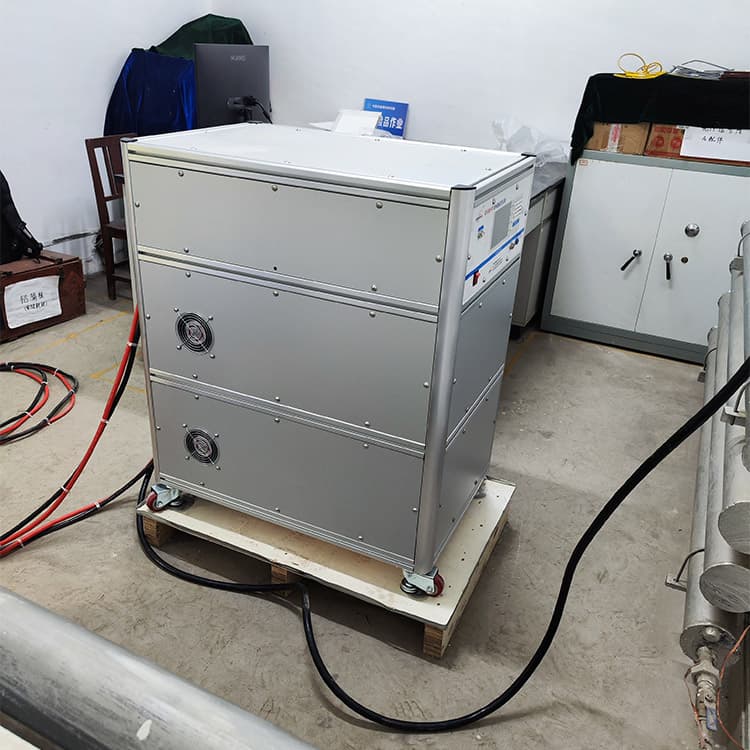

Capacitive Pulse Magnetizer
DX-MAG series capacitive pulse magnetizing/demagnetizing machines are composed of high-voltage oil-immersed pulse capacitors, silicon-controlled rectifiers (SCRs), and control circuits.
The system provides low energy consumption, high efficiency, fast magnetizing speed, and flexible magnetizing-fixture solutions for permanent-magnet products.
Product Overview
DX-MAG series capacitive pulse magnetizing/demagnetizing machines are composed of high-voltage oil-immersed pulse capacitors, silicon-controlled rectifiers (SCRs), and control circuits.
The AC power supply increases the voltage through an isolation transformer and is then converted into DC through a rectifier to charge the capacitor. The resulting high-voltage DC energy is stored in the capacitor.
When the preset voltage is reached, the charging circuit is switched off. The SCR then controls the discharge of the stored energy through the magnetizing coil, generating a strong magnetic field to magnetize the permanent magnet to saturation.
The DX-MAG series capacitive pulse magnetizer is suitable for magnetizing permanent-magnet products such as horns, DC motors, DC fans, stepping motors, rubber magnets, toys, and other magnetic components.
The system provides low energy consumption, high efficiency, fast magnetizing speed, and flexible magnetizing-fixture solutions. Various magnetizing fixtures can be designed according to the customer's product requirements.
Features of the Capacitive Pulse Magnetizer
1. Low Power Consumption
Uses discharge flux recovery technology to reduce coil heating and improve energy utilization.
2. High Charging & Discharging Efficiency
Charging and discharging efficiency is approximately three times higher than that of traditional magnetizers.
3. Customized Magnetizing Fixtures
Magnetizing fixtures/tools can be designed according to user requirements, providing high precision and durability.
Applications
The DX-MAG series can be used for magnetizing permanent-magnet products including:
Customized Magnetizing Fixtures
Customized magnetizing fixtures can be designed according to the customer's product requirements.
DX-MAG12C Series Capacitive Pulse Magnetizer
| Parameter | DX-MAG-12C20 | DX-MAG-12C30 | DX-MAG-12C40 |
|---|---|---|---|
| Input Power | AC220±10% | AC380±10% | AC380±10% |
| Input Current | 40A | 40A | 40A |
| Charging Voltage | DC200V–1200V | DC200V–1200V | DC200V–1200V |
| Capacitance Capacity | 2000 μF | 3000 μF | 4000 μF |
| Stored Energy | 1440 J | 2160 J | 2880 J |
| Output Current | 15 kA | 15 kA | 15 kA |
| Magnetization Interval | 1.0 second/time | 1.5 seconds/time | 2.0 seconds/time |
DX-MAG25C Series Capacitive Pulse Magnetizer
| Parameter | DX-MAG-25C10 | DX-MAG-25C15 | DX-MAG-25C20 |
|---|---|---|---|
| Input Power | AC220±10% | AC380±10% | AC380±10% |
| Incoming Current | 40A | 40A | 40A |
| Charge Voltage | DC200V–2500V | DC200V–2500V | DC200V–2500V |
| Capacitance | 1000 μF | 1600 μF | 2000 μF |
| Stored Energy | 3125 J | 5000 J | 6250 J |
| Output Current | 30 kA | 30 kA | 30 kA |
| Magnetization Interval | 2.0 seconds/time | 3.0 seconds/time | 3.0 seconds/time |
