Liquid Cooling Systems
Industrial liquid cooling solutions covering compact air-cooled and water-cooled chillers, oil and coolant chillers, inverter technology and modular systems for scalable plant expansion.
Compact Water Chillers · Series: NANO CHILL
Compact process cooling for constrained footprints
Werner Finley compact water chillers are designed to cater to a wide range of applications. The range combines a compact mechanical design with industrial-grade performance, optimised for shop floors where space is limited.
Leveraging water's strong physical and chemical cooling properties, these systems remove unwanted process heat efficiently across multiple industrial sectors while supporting the latest energy-saving technologies.

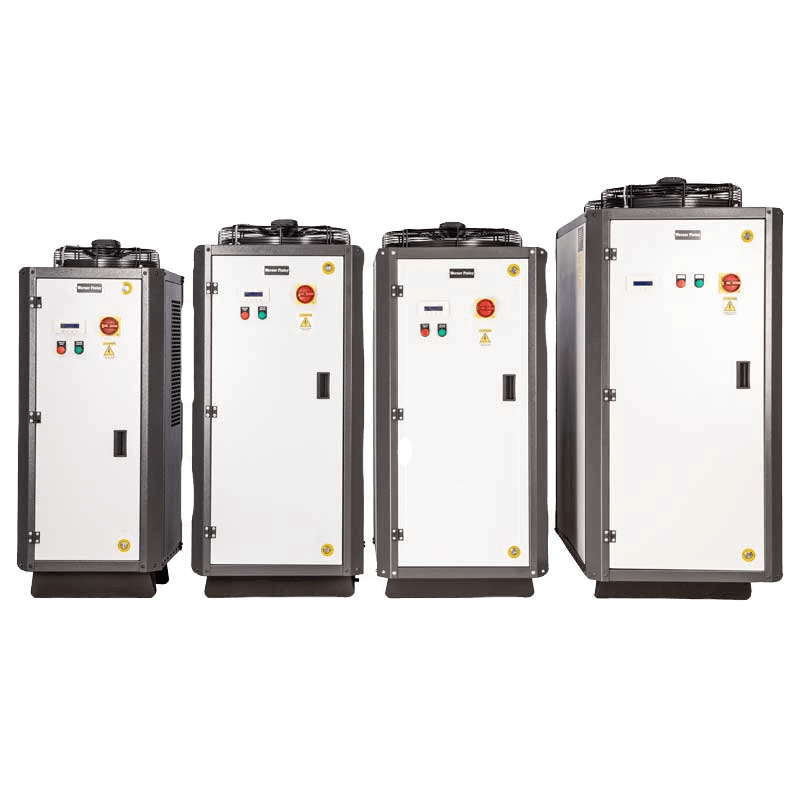

Air Cooled Chiller
Compact air-cooled chillers engineered for reliable and energy-efficient industrial cooling where space is at a premium and ambient conditions are demanding.
Key Features
- Rated ambient temperature: 35°C
- High-efficiency rotary / scroll compressors
- Condenser operates up to 50°C ambient temperature
- Reliable global brand pumps
- With / Without pump configuration options
- Intelligent controller with RS485 communication
- Eco-friendly R410A refrigerant
Capacity Range
1.0 TR to 5 TR
Three-phase power supply with multiple configuration variants.
Water Cooled Chiller
High-capacity water-cooled chillers using premium stainless steel components and efficient compressors for demanding industrial cooling duties.
Key Features
- Condenser operates up to 50°C ambient temperature
- Insulated SS 304 reservoir
- All wetted parts manufactured from SS 304
- SS 316 plate brazed heat exchanger
- With / Without pump configuration options
- Intelligent controller with RS485 interface
Capacity Range
1.0 TR to 30 TR
Eco-friendly R410A refrigerant. Cooling tower water at 32°C, media temperature 15°C, redundancy from 10 TR.

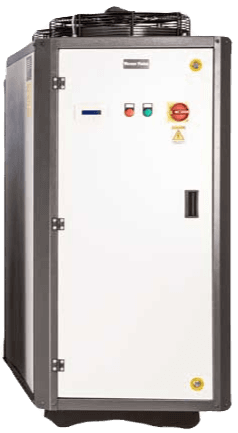

Oil Chillers
Oil chillers for maintaining hydraulic oil temperature in industrial processes and power packs, protecting oil properties and extending system life.
Key Features
- Condenser designed for up to 50°C ambient
- Fin & tube / micro-channel heat exchangers
- Low noise indoor-friendly design
- Reliable pumps from global manufacturers
- Shell & Coil / SS coil evaporators
- Microprocessor-based intelligent controller
Capacity Range
0.5 TR to 10 TR
Typical refrigerants: R134a / R407C.

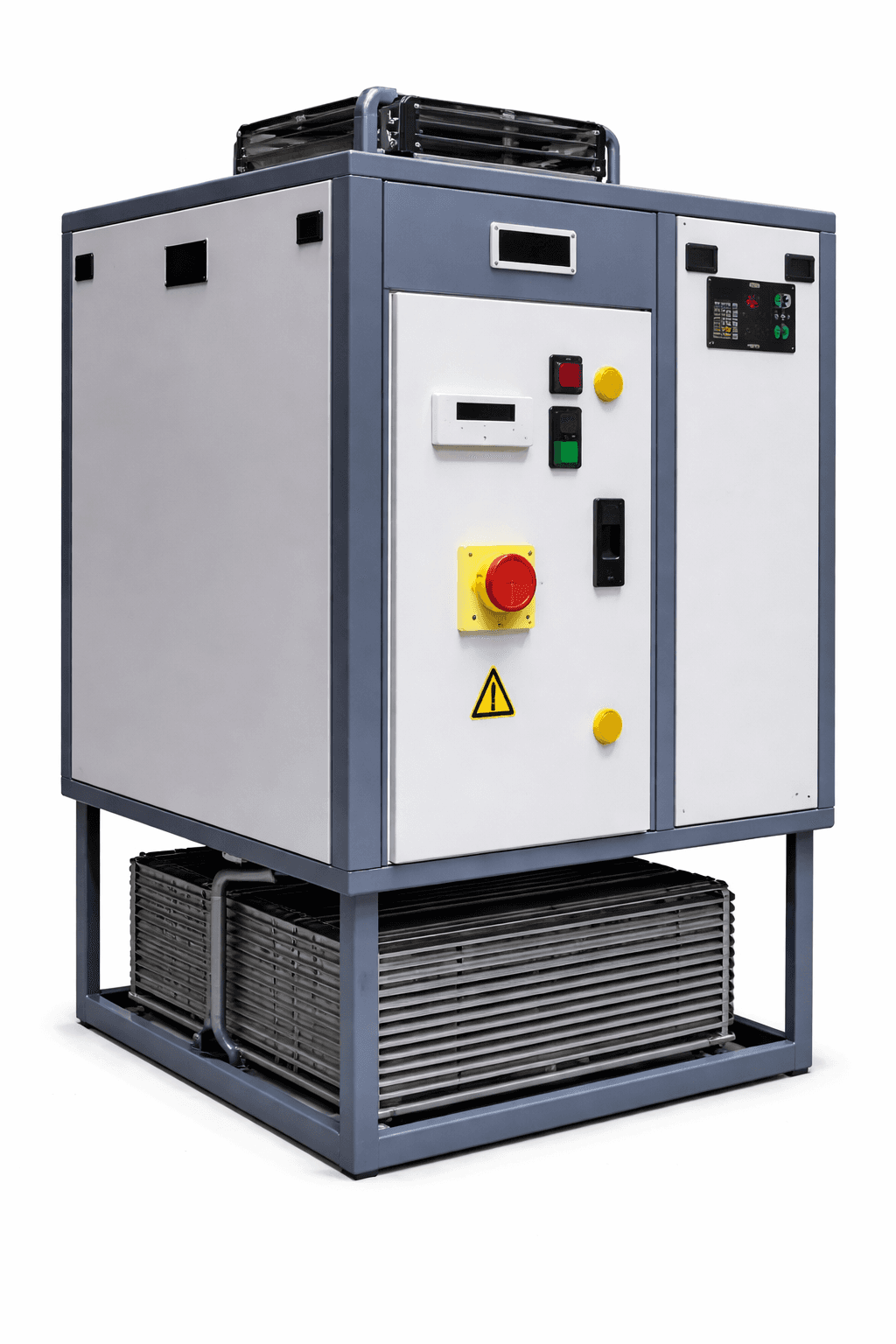

Coolant Chillers
Coolant chillers for machine tools, grinding machines, VMCs, welding and metal cutting applications, ensuring stable coolant temperature for productivity and accuracy.
Key Features
- Condenser designed to operate up to 50°C ambient
- Fin & tube / micro-channel heat exchanger options
- Low noise performance for indoor environments
- Reliable pumps for continuous operation
- Shell & Coil / SS evaporators
- Microprocessor-based intelligent controller
Capacity Range
0.5 TR to 10 TR
Typical refrigerants: R134a / R407C.
Inverter Chillers (Eco Chill Series)
Inverter-driven chillers that leverage DC inverter technology to follow varying cooling loads, reducing energy consumption and supporting Industry 4.0 integration.
Key Features
- Condenser designed for up to 50°C ambient
- Insulated SS 304 reservoir
- SS 304 wetted parts for corrosion resistance
- SS 316 plate heat exchanger
- With / Without pump configurations
- RS485 communication interface
Capacity Range
1.0 TR to 30 TR
Typical refrigerant: R410A.

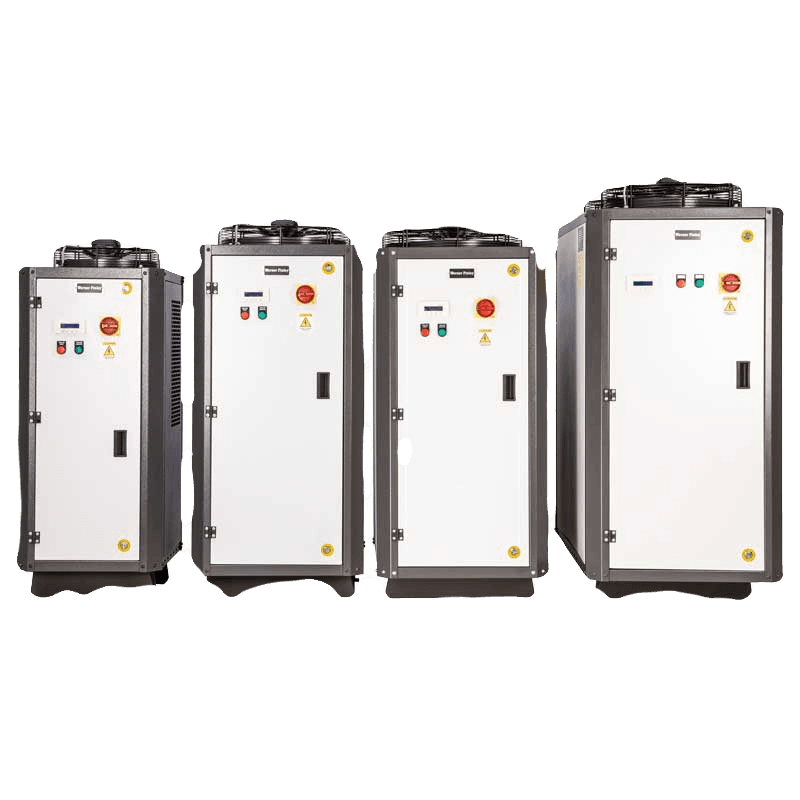

Coolant Chillers (Eco Chill Series)
Eco Chill coolant chillers for applications that demand high accuracy in coolant temperature control alongside the energy savings of inverter technology.
Key Features
- Condenser designed to operate up to 50°C ambient temperature
- High efficiency fin & tube / micro-channel heat exchanger
- Low noise level for indoor installation
- Reliable pumps from globally renowned manufacturers
- High efficiency Shell & Coil / SS coil evaporators
- Microprocessor-based intelligent controller
Capacity Range
0.5 TR to 10 TR
High efficiency scroll compressors with eco-friendly R134a / R407C refrigerant.

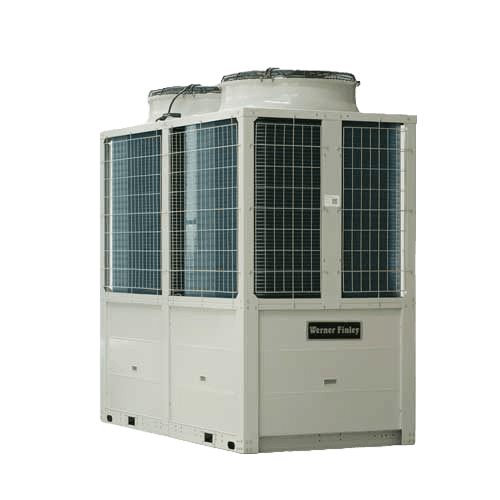

Modular Chillers (Air Cooled)
Air-cooled modular chillers for scalable installations requiring low noise, lower operating cost and wide capacity coverage.
Key Features
- Operates up to 48°C ambient temperature
- SS 304 wetted parts for process reliability
- SS 316 plate heat exchanger
- Media temperature range 5°C to 20°C
- Lower operating cost and reduced noise levels
Capacity Range
21.5 TR, 44 TR, 52 TR, 115 TR
Typical refrigerant: R410A.

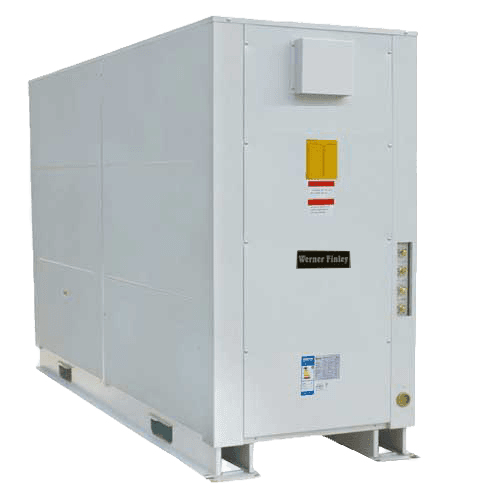

Modular Chillers (Water Cooled – Eco Chill)
Water-cooled modular chillers tailored for scalable industrial expansion where future load growth and redundancy are key design drivers.
Key Features
- Condenser designed to operate up to 50°C ambient
- Shell & Tube condenser for efficient heat rejection
- SS 304 wetted parts
- Cooling tower inlet temperature up to 32°C
- Designed for capacity scalability and easy installation
Capacity Range
50.5 TR, 75 TR
Typical refrigerant: R410A.
