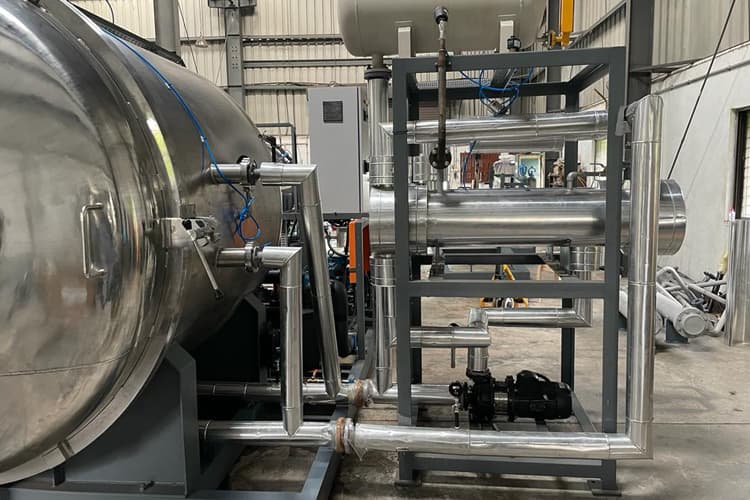

300 KG Food Freeze Dryer
High Capacity Industrial Freeze Drying System for Large Scale Food Processing, Commercial Manufacturing and Research Applications.
The 300 KG Food Freeze Dryer delivers reliable freeze drying performance while preserving product quality, nutritional value, colour, flavour and texture.
Product Overview
The 300 KG Food Freeze Dryer from MAGTRANS Systems Private Limited, in association with REFVAC Freeze Drying Systems, is engineered for large-scale food processing, industrial manufacturing, research laboratories, and commercial production facilities requiring high-capacity freeze drying performance.
Utilizing advanced Freeze Drying (Lyophilization) technology, the system removes moisture through sublimation while preserving the original colour, flavour, aroma, texture, and nutritional value of food products.
Its large batch capacity enables manufacturers to increase productivity, improve operational efficiency, and consistently produce premium-quality freeze dried products with extended shelf life.
Industrial Performance
The 300 KG Food Freeze Dryer is designed for continuous commercial production where productivity, reliability, and energy efficiency are essential.
Its high-capacity design minimizes processing time while maximizing production output, making it ideal for demanding industrial applications.
Freeze Drying Technology
Freeze drying (Lyophilization) is an advanced dehydration process where moisture is removed from frozen products through sublimation under high vacuum.
This process preserves: • Colour • Flavour • Aroma • Texture • Nutritional Value
while significantly extending shelf life without compromising product quality.
Key Features
- 300 KG/Day Freeze Drying Capacity
- 100 KG Per Batch
- 18 m² Heating Surface
- 48 kW Connected Load
- Advanced Vacuum Freeze Drying System
- Frascold Refrigeration System
- Leybold Vacuum System
- Grundfos Hot Water Circulation Pump
- SS-304 Loading Trays
- Pneumatic System
- Power and Control Panels
Benefits
- Preserves taste, colour, aroma and texture
- Retains nutritional value
- Extended shelf life
- Ambient storage under recommended conditions
- Lightweight products
- Reduced transportation costs
- Premium product quality
Technical Specifications
| Freeze Drying Capacity | 300 kg/day |
| Batch Capacity | 100 kg/batch |
| Batch Duration | 8–9 hours |
| Heating Surface Area | 18 m² |
| Residual Moisture | Less than 4% w/w |
| Electrical Supply | 415 V, 3 Phase, 50 Hz |
| Connected Load | 48 kW |
| Make-up Water | 0.5 cubic meter/hour; 5 kg/sq.cm |
| Electric Steam Generator | 30 kg/hr max.; 24 kW connected load |
| Compressed Air Pressure | 6 kg/cm² |
| Compressed Air Flow | Approx. 5 m³/hour |
| Air Compressor | 2 HP |
| Plant Space | 7 m × 6 m |
| Overall Built-up Area | Approx. 2,000 sq. ft. |
| Refrigeration System | Frascold Italy make |
| Drying Chamber / Ice Condenser | MS / SS-304 |
| Hot Water System | Grundfos make pump |
| Vacuum System | Leybold Germany make |
| Loading Trays | SS-304 |
| Tray Sets | 2 sets |
| Trays per Set | 80 trays |
| Tray Size | 610 × 350 × 35 mm |
| Pneumatic System | Included |
| Power Panel | Included |
| Control Panel | Included |
Applications
- Fruits
- Vegetables
- Herbs
- Spices
- Dairy Products
- Meat
- Seafood
- Coffee
- Bakery Products
- Ready-to-Eat Foods
- Pharmaceuticals
- Nutraceuticals
- Food Ingredients
- Industrial Food Manufacturing
Why MAGTRANS?
MAGTRANS Systems Private Limited offers complete solutions:
- • Consultation
- • Development
- • Equipment
- • Installation
- • Commissioning
- • Training
- • Support
- • Service
Ready to Expand Your Industrial Freeze Drying Capacity?
Our engineering experts will help you select the ideal high-capacity freeze drying solution for your production requirements.
