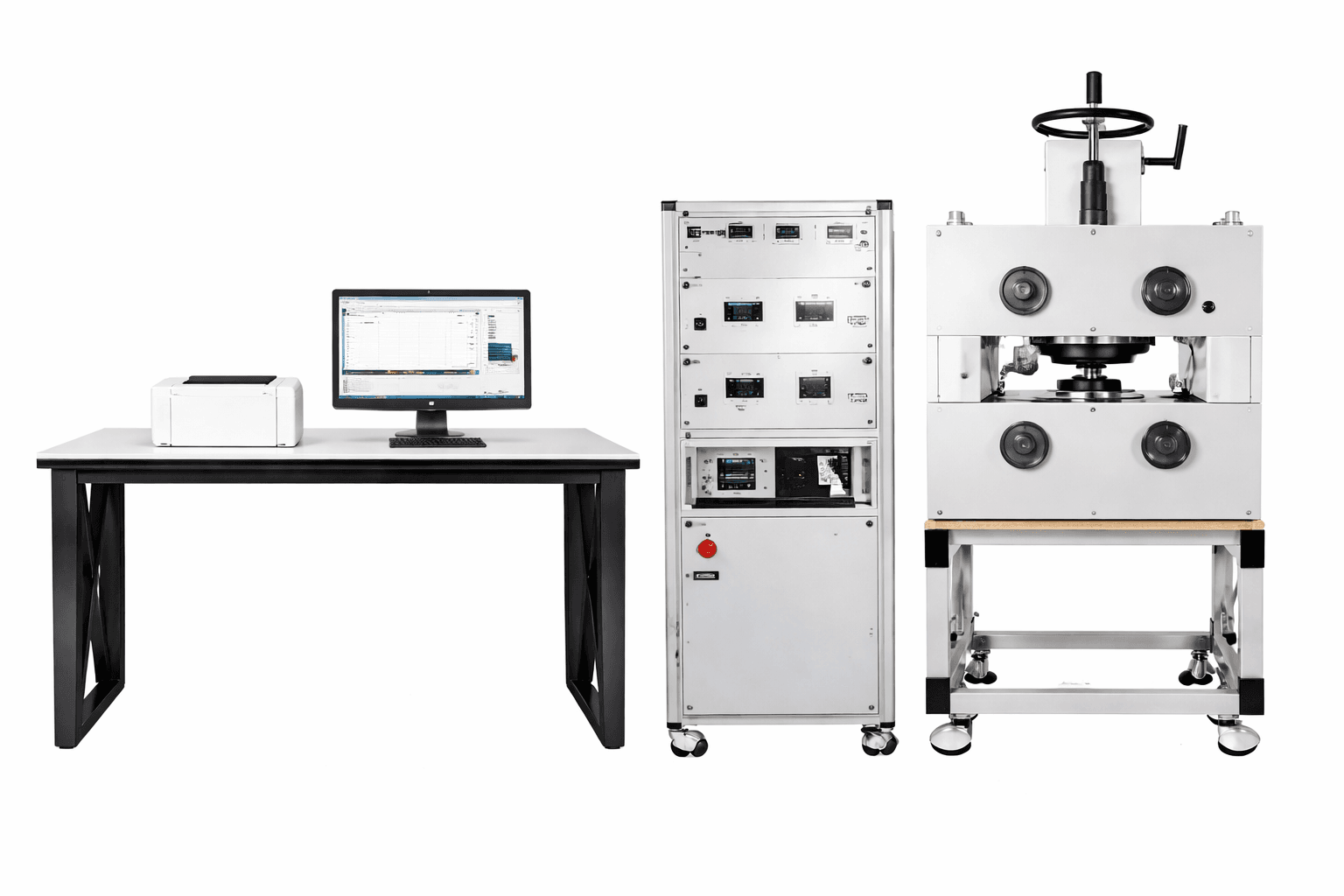

DX-2012H DC Hysteresis Graph Test System
Hard Magnetic Materials Measurement
BH loop tracer for measuring remanence, coercive force and maximum magnetic energy product of permanent magnetic materials including ferrite, AlNiCo, NdFeB and samarium cobalt.
Product Overview
DX-2012H DC Hysteresis Graph Test System is a BH loop tracer designed to measure the magnetic properties of permanent magnetic materials. The system measures important magnetic parameters including remanence (Br), coercive force (Hcb), intrinsic coercive force (Hcj) and maximum magnetic energy product (BHmax).
It is suitable for testing various permanent magnetic materials such as ferrite, Alnico, NdFeB and samarium cobalt. The system can automatically generate BH hysteresis loops and demagnetization curves for accurate analysis of magnetic performance.
The DX-2012H system conforms to China National Standards GB/T 3217-92, GB 11209-89, and international standard IEC 404-5.
Key Features
- Automatic measurement of saturation hysteresis loops
- Measurement of important magnetic parameters including Br, Hcb, Hcj and BHmax
- Automatic demagnetization curve measurement for rare-earth permanent magnets
- Suitable for ferrite, rubber magnets, AlNiCo, NdFeB and SmCo materials
- Supports multiple sample shapes including ring, square, tile and irregular samples
- Computer-controlled testing and data processing system
- Optional high-temperature measurement up to 220°C
Measurement Capabilities
The system automatically measures magnetic parameters such as:
- Saturation magnetization (Js)
- Remanence (Br)
- Coercive force (HcB)
- Intrinsic coercive force (HcJ)
- Maximum magnetic energy product (BHmax)
- Recoil permeability (µrec)
Rare-earth permanent magnet materials can be measured in the second quadrant to obtain parameters such as Br, HcB, HcJ, Hk(H90) and BHmax.
Main Specifications
| Parameter | Description |
|---|---|
| Measurement Type | BH Hysteresis Loop Measurement |
| Materials Tested | Ferrite, AlNiCo, NdFeB, SmCo |
| Parameters Measured | Js, Br, HcB, HcJ, (BH)max |
| Sample Shapes | Ring, square, tile and irregular shapes |
| Standards | GB/T 3217-92, GB 11209-89, IEC 404-5 |
| Temperature Option | Up to 220°C with heating system |
Measurement System Design
The DX-2012H system uses multiple sensing methods to achieve high accuracy measurements:
- B-coil + Fluxmeter to measure magnetic induction
- J-coil + Fluxmeter to measure magnetic polarization
- Hall magnetometer to measure magnetic field intensity
- Software correction to reduce Hall probe nonlinear error
Within the magnetic field range of 0 – 2.4 Tesla, nonlinear error can be controlled within ±0.2%.
Software Features
The DX-2012H measurement software provides a visual and easy-to-use interface.
- Compatible with Windows operating systems
- Automatic control and intelligent test identification
- Real-time monitoring of sampling waveform and instrument status
- Automatic calculation of magnetic parameters
- Export of test results to Excel format
- Simultaneous display of multiple curve diagrams
- Print preview and automatic report generation
- Test reports can be exported as JPG image files
Test reports include:
- Magnetic hysteresis loop curves
- Demagnetization curves
- Test conditions and sample parameters
- Magnetic performance results
Applications
- Permanent magnet material testing
- Magnetic materials research and development
- Quality control of permanent magnets
- Academic research laboratories
- Industrial magnet production testing
