DX-2000HC Economical Soft Magnetic Coercivity Measurement System
Soft Magnetic Materials Measurement
Automatic coercivity measurement system for soft magnetic materials using a simulated impact method with electronic integration and computer control.
Product Overview

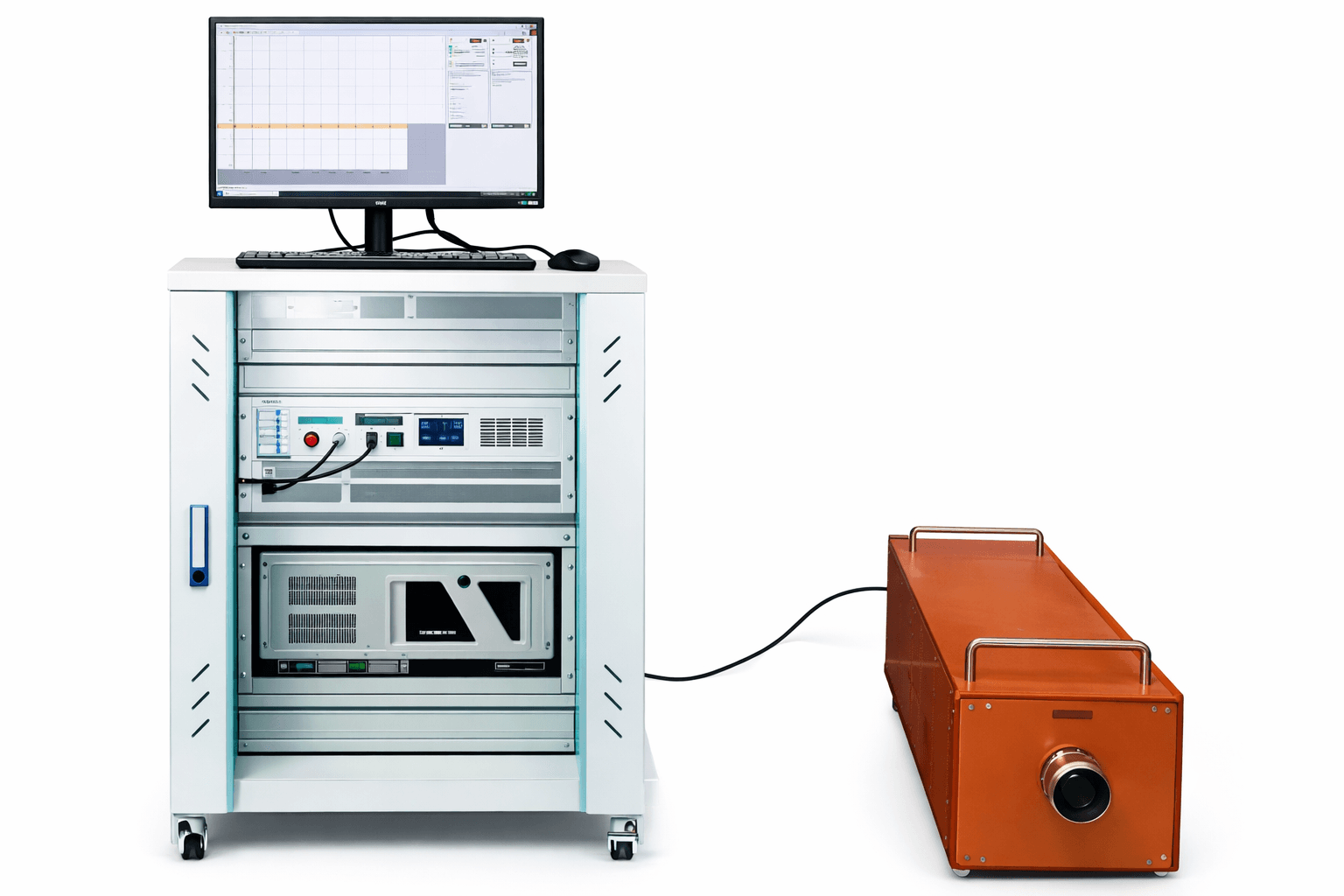

DX-2000HC Economical Soft Magnetic Coercivity Measurement System is an automatic magnetic testing device designed for measuring the coercivity (Hc) of soft magnetic materials.
The system adopts the simulated impact method combined with computer control technology, A/D and D/A conversion, and electronic integration. It replaces the traditional impact galvanometer used in classical measurement systems.
Compared with traditional methods, the DX-2000HC system provides higher measurement accuracy, faster testing speed, better repeatability and reduced human error, making it suitable for laboratory research and industrial magnetic material testing.
The system complies with several national and international magnetic testing standards.
Applicable Standards
The DX-2000HC measurement system complies with:
- GB3657-83 – Measurement method for magnetic materials
- SJ/T13888-2009 – Measurement method of coercivity
- IEC 60404-7 – Measurement of coercivity of magnetic materials in open magnetic circuits
Key Features
- Automatic measurement of coercivity (Hc) for soft magnetic materials
- Computer controlled simulated impact measurement method
- Electronic integrator replaces traditional impact galvanometer
- High measurement accuracy and fast testing speed
- Excellent repeatability and stability
- Automatic zero adjustment before measurement
- Software-controlled automatic test process
- Simple operation with minimal operator training required
Test Sample Information
Supported Materials
- Soft magnetic ferrite
- Permalloy
- Amorphous magnetic materials
- Nanocrystalline magnetic materials
- Iron powder cores
- Electrical pure iron
- Silicon steel sheets
Supported Sample Shapes
- Bar / rod shaped samples
- Sheet shaped samples
- L-shaped samples
- U-shaped samples
Testing is performed using open circuit solenoid measurement systems consisting of the sample, magnetizing coil (N1) and measuring coil (N2).
Measurement Capabilities
The DX-2000HC system can measure:
- Coercivity Hc
- Basic magnetization curve
- Magnetic characteristic parameters of soft magnetic materials
Magnetic field intensity is determined by measuring the magnetizing current, with magnetic field locking accuracy up to 0.1%.
Magnetic flux density is measured using an electronic integrator with automatic zero correction and stability adjustment.
Technical Specifications
| Parameter | 350VA | 500VA | 1000VA |
|---|---|---|---|
| Input Power | AC 200–240V, 50/60Hz | AC 200–240V | AC 200–240V |
| Maximum Output Power | 350VA | 500VA | 1000VA |
| Maximum Output Voltage | ±35V | ±50V | ±50V |
| Maximum Output Current | 10A | 10A | 20A |
General System Specifications
| Parameter | Specification |
|---|---|
| Display | TFT True Color LCD |
| Dimensions | 510 × 490 × 230 mm |
| Weight | 30 – 40 kg |
| Operating Temperature | 23 ±15 °C |
| Humidity | 20 – 80 % RH |
| Thermal Equilibrium Time | 10 minutes |
| Magnetic Interference | Must be avoided |
Measurement System Parameters
| Parameter | Specification |
|---|---|
| Current Stability | Better than 0.05% |
| Current Resolution | <0.003% of current range |
| Flux Range | 2, 4, 10, 20 mWb |
| Fluxmeter Sensitivity | 0.05 µWb |
| A/D Conversion | 24-bit high precision |
| D/A Conversion | 16-bit dual channel |
Measurement Accuracy
When measuring pure iron bar samples according to GB/T13888-2009:
| Parameter | Value |
|---|---|
| Coercivity Uncertainty | 2% ±2 A/m |
| Repeatability | 1.5% ±1 A/m |
Software Features
DX-2000HC measurement software provides automated testing and data management functions.
- Supports Windows XP, Windows 7 and Windows 10
- Automatic measurement and data processing
- Automatic zero calibration before testing
- Measurement results stored in text format files
- Data files can be viewed using Excel, Word or Notepad
- User-friendly interface for easy operation
Applications
- Soft magnetic material research laboratories
- Magnetic component quality inspection
- Electrical steel testing
- Magnetic material manufacturing industries
- University research and development laboratories
