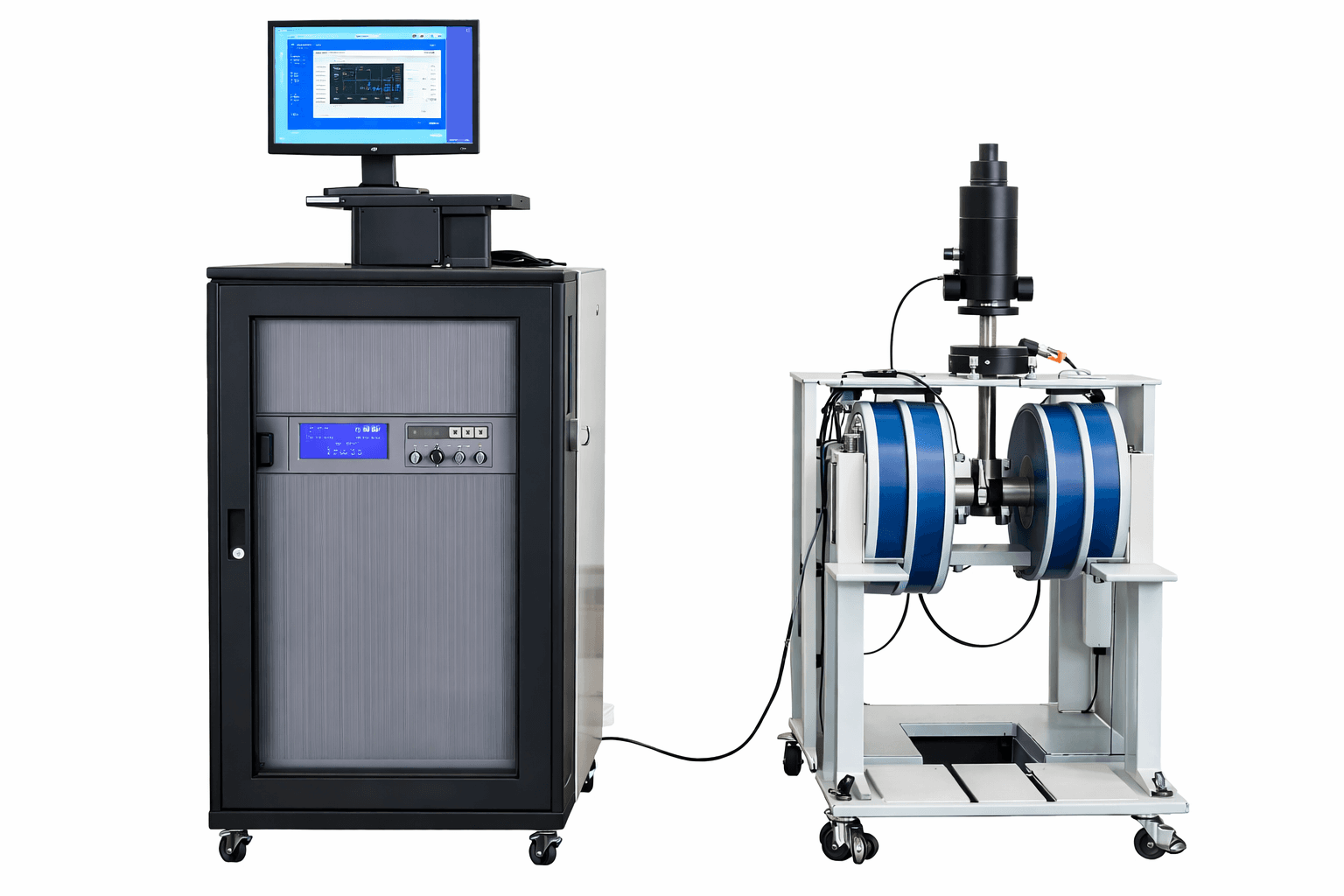

DXV-100 Laboratory VSM
Vibrating Sample Magnetometer (VSM)
Laboratory-scale VSM for characterising soft and hard magnetic materials with stable field control and flexible sample holders.
Product Overview
DXV-100 Laboratory VSM Vibrating Sample Magnetometer is designed to measure the fundamental magnetic properties of materials such as magnetisation curves, hysteresis loops and demagnetisation curves.
The system analyses parameters including saturation magnetisation, residual magnetisation, coercivity, magnetic energy product and magnetic permeability. It supports measurement of powders, granules, flakes and solid samples for research laboratories and material testing.
Key Features
- Accurate measurement of magnetisation curves and hysteresis loops
- High sensitivity magnetic moment detection up to 5 × 10⁻⁵ emu
- Stable electromagnet producing magnetic field up to 0.8 Tesla
- Compatible with powder, pellet and bulk samples
- Advanced measurement software with Excel and Origin export
- Suitable for materials research and quality control
Main Specifications
| Parameter | Specification |
|---|---|
| Magnetic Moment Range | 10⁻³ emu – 300 emu |
| Sensitivity | 5 × 10⁻⁵ emu |
| Relative Accuracy | ±1% |
| Repeatability | ±1% |
| Magnetic Field Strength | 0 – 0.8 Tesla |
| Magnetic Pole Gap | 40 mm |
| Pole Diameter | 60 mm |
| Field Resolution | 0.1 mT |
System Components
- DXSG-100 Electromagnet
- DX-2K Steady Current Power Supply
- Vibrating Head and Detection Coil System
- Magnetic Moment Measurement Unit
- Control Computer with Measurement Software
- Printer for data output
Applications
- Magnetic materials research
- Hysteresis loop and magnetisation analysis
- Magnetic nanoparticle studies
- Quality control of magnetic materials
- Academic and industrial R&D laboratories
