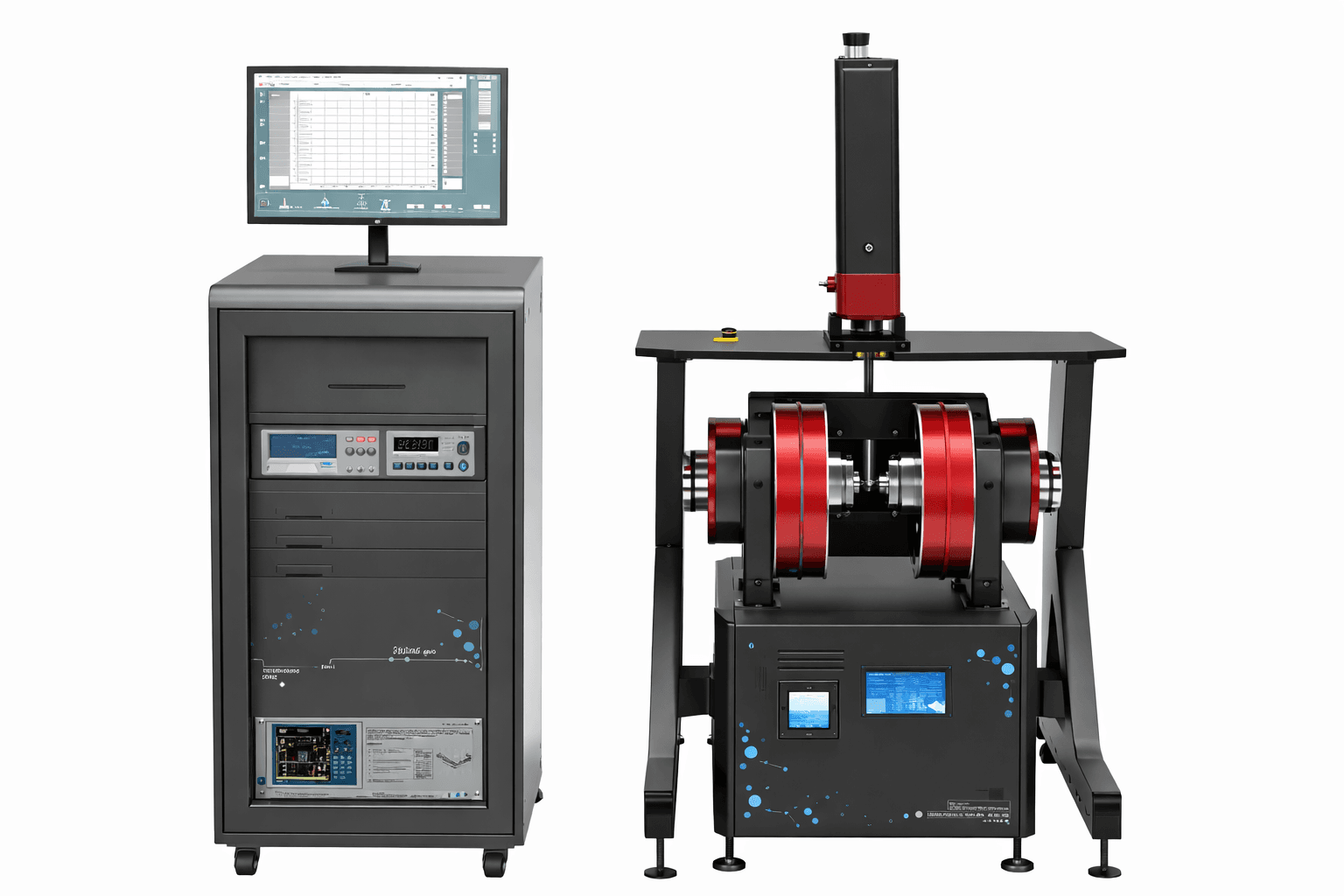

DXV-8000 Vibrating Sample Magnetometry (VSM) System
Vibrating Sample Magnetometer (VSM)
High-performance VSM system designed for demanding magnetic materials R&D and production support.
Product Overview
DXV-8000 Vibrating Sample Magnetometer (VSM) is designed for high-precision magnetic measurements of advanced materials. The system supports multiple sample rod configurations allowing measurement of thin films, powders, liquids and bulk samples.
The instrument provides excellent sensitivity for materials with very low magnetic moments and is particularly suitable for multilayer films and advanced magnetic materials research.
The system can measure magnetisation curves, hysteresis loops and temperature-dependent magnetic behaviour of materials.
Key Features
- High sensitivity magnetic moment measurement
- Supports thin films, powders, liquids and bulk samples
- Continuous 360° motorized sample rotation
- High-precision laser displacement sensor (1 μm resolution)
- Automatic sample centering for improved accuracy
- Fast data acquisition with 10 ms sampling interval
- First-order reversal curve (FORC) measurement capability
- Optional high-temperature and low-temperature measurement systems
- Software developed using LabVIEW for flexible control and analysis
Measurement Capabilities
DXV-8000 VSM enables measurement of:
- Magnetisation curves (M-H curves)
- Hysteresis loops
- Magnetisation vs temperature (M-T curves)
- Magnetic behaviour over time and temperature
- Curie temperature measurement
- Superconducting transition measurement (with low-temperature option)
- First-Order Reversal Curve (FORC) analysis
Magnetic Moment Specifications
| Parameter | Specification |
|---|---|
| Magnetic Moment Range | 3.4 × 10⁻⁸ emu – 10³ emu |
| Sensitivity | 10⁻⁷ emu |
| Stability | ±0.05% / day |
| Repeatability | ±0.5% |
| Accuracy | ±1% |
| Noise (10s/pt RMS) | 30 nemu |
| Sample Mass | 0 – 10 g |
| Vibration Amplitude | 5 – 10 mm |
| Vibration Frequency | 55 – 85 Hz |
Magnetic Field Options
| Magnet Model | Room Temp Field | Low Temp Field | High Temp Field |
|---|---|---|---|
| DXWDS-130 | 2.8 Tesla | 2.1 Tesla | 1.7 Tesla |
| DXWDS-225 | 3.2 Tesla | 2.4 Tesla | 2.4 Tesla |
Magnetic field characteristics:
- Magnetic field accuracy: ±1%
- Magnetic field resolution: 1 mOe
- Magnetic field stability: 100 mOe
- Maximum field change rate: 10,000 Oe/s
Temperature Measurement Options
| Temperature System | Range | Accuracy | Resolution |
|---|---|---|---|
| Cryostat | Down to 4.2K | 0.1K | 0.001K |
| High Temperature Furnace | Room Temp – 1273K | 0.5K | 0.001K |
| Integrated Temperature System | 100K – 950K | 0.5K | 0.001K |
Sample space diameter: 7 mm
Vector Magnetic Measurement Option
Optional vector coils allow simultaneous measurement of magnetic moment components in the X and Y directions. This enables advanced studies of anisotropic magnetic materials and magnetic susceptibility tensors.
Accessories and Optional Equipment
| Accessory | Function |
|---|---|
| Temperature Controller | Controls cryostat or furnace |
| Mechanical Pump | Vacuum generation |
| Molecular Pump | High-vacuum generation |
| Liquid Nitrogen Tank | Cooling system |
| Water Cooler | Cooling electromagnet |
| High Temperature Sample Rod | High-temperature measurements |
| Disposable Sample Container | Sample mounting |
Applications
- Magnetic materials research and development
- Thin film magnetism studies
- Nanomaterials and magnetic nanoparticles analysis
- Superconducting materials research
- Magnetic storage and spintronic materials research
- Academic and industrial laboratories
