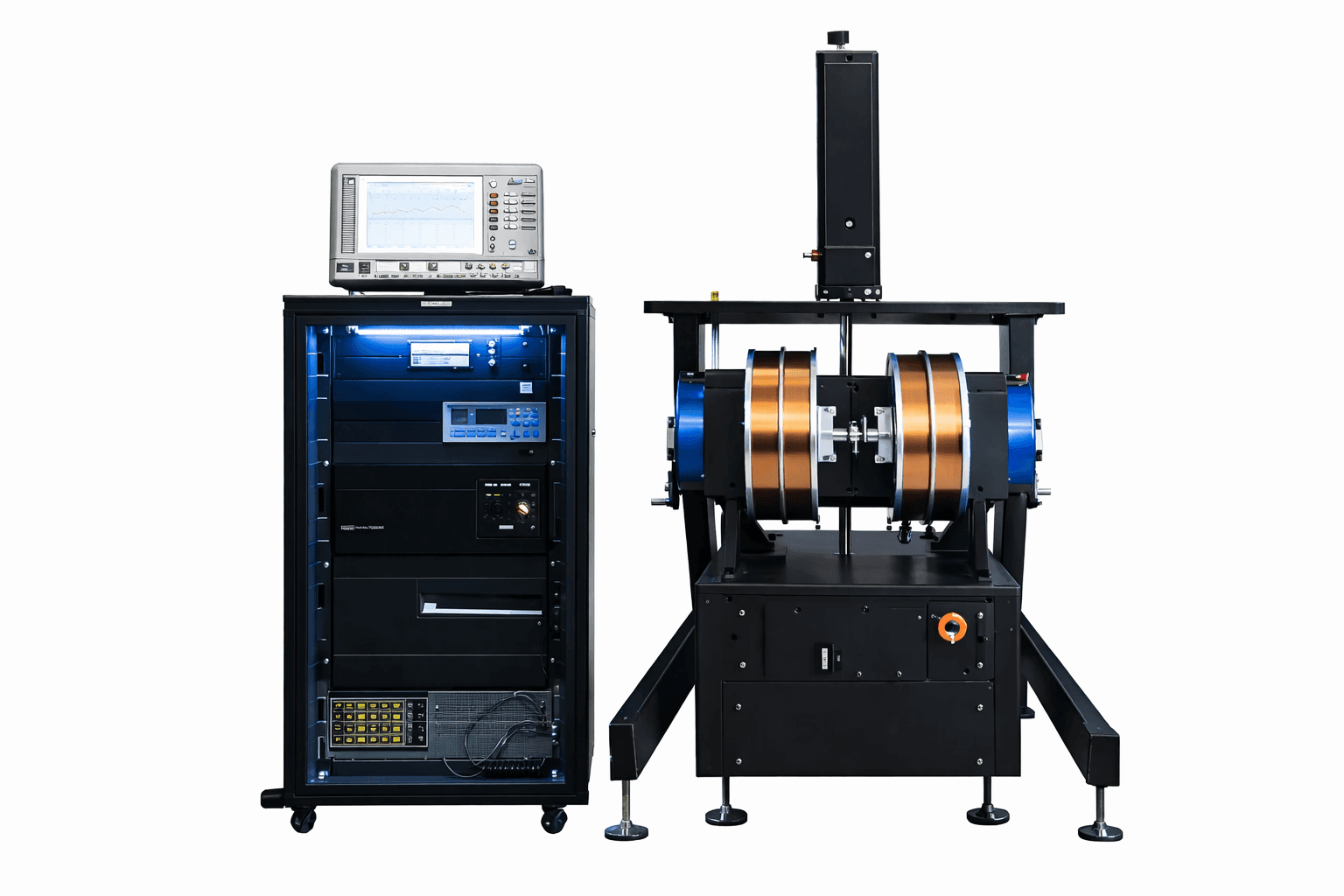

DXV-9000 Magnetic Moment Measurement Equipment (VSM System)
Vibrating Sample Magnetometer (VSM)
Premium VSM platform for advanced magnetic moment and hysteresis studies across a wide field and temperature range.
Product Overview
DXV-9000 Magnetic Moment Measurement Equipment is a high-performance vibrating sample magnetometer designed for advanced magnetic materials research and precision magnetic moment measurement.
The system measures magnetic hysteresis loops (M-H curves), magnetisation behaviour and temperature-dependent magnetic properties of materials. It enables accurate determination of parameters such as coercivity, remanent magnetisation, saturation magnetisation and magnetic moment.
The instrument supports research on diamagnetic, paramagnetic, ferromagnetic, ferrimagnetic and antiferromagnetic materials including bulk samples, powders, thin films, liquids and single crystals.
Key Features
- High-precision magnetic moment measurement with noise level down to 10⁻⁸ emu
- High-speed magnetic field scanning up to 5000 Oe/s
- Continuous 360° rotating vibrating head for anisotropic magnetic studies
- Automatic sample centering system for improved measurement accuracy
- Fast data acquisition (10 ms interval) for capturing rapid magnetic changes
- Laser displacement sensor for vibration stability monitoring
- Compatible with room temperature, high-temperature and low-temperature measurements
- Advanced measurement software with automated analysis
Measurement Capabilities
The DXV-9000 system can measure:
- Magnetic hysteresis loops (M-H curves)
- Magnetisation vs temperature curves (M-T curves)
- Curie temperature measurement
- Superconducting transition measurement (with low-temperature option)
- First Order Reversal Curve (FORC) analysis
- Magnetic energy product analysis
Technical Specifications
| Parameter | Specification |
|---|---|
| Magnetic Moment Measurement Range | 3.5 × 10⁻⁸ to 10³ emu |
| Moment Noise (Room Temperature) | 150 μemu @0.1s/pt |
| Moment Noise | 80 μemu @1s/pt |
| Moment Noise | 35 μemu @10s/pt |
| Measurement Accuracy | ±1% |
| Stability | ±0.05% of full scale per day |
| Repeatability | ±0.5% |
| Maximum Sample Mass | 10 g |
| Data Acquisition Interval | 10 ms – 10 s |
| Vibration Amplitude | 2 – 8 mm |
| Vibration Frequency | 55 – 85 Hz |
Magnetic Field Characteristics
| Parameter | Specification |
|---|---|
| Magnetic Field Resolution | 1 mOe |
| Magnetic Field Accuracy | ±1% |
| Magnetic Field Change Rate | up to 5000 Oe/s |
| Sample Lifting Range | 0 – 300 mm |
| Lifting Accuracy | 0.1 mm |
| Rotating Range | Continuous |
| Rotation Accuracy | 0.01° |
System Configurations
Typical system configuration includes:
- Variable gap electromagnet
- Bipolar electromagnet power supply
- Lock-in amplifier for signal detection
- Vibrating head assembly
- Sample rod and sample holders
- Calibration sample
- Control cabinet and measurement electronics
- Computer with measurement software
- Chiller for cooling electromagnet
- Optional high-temperature and low-temperature systems
Temperature Options
| Option | Range | Stability |
|---|---|---|
| Low Temperature | 80K – 370K | ±0.1K |
| High Temperature | 350K – 1050K | ±1K |
Sample environments include flowing nitrogen for low temperature and argon atmosphere for high temperature experiments.
Sample Types Supported
- Bulk magnetic materials
- Powders and nanoparticles
- Thin films
- Liquids
- Single crystals
- Magnetic recording materials
- GMR and spin-valve materials
Applications
- Magnetic materials research and development
- Nanomaterials and thin film magnetism studies
- Superconducting materials research
- Magnetic storage materials development
- Academic and industrial research laboratories
