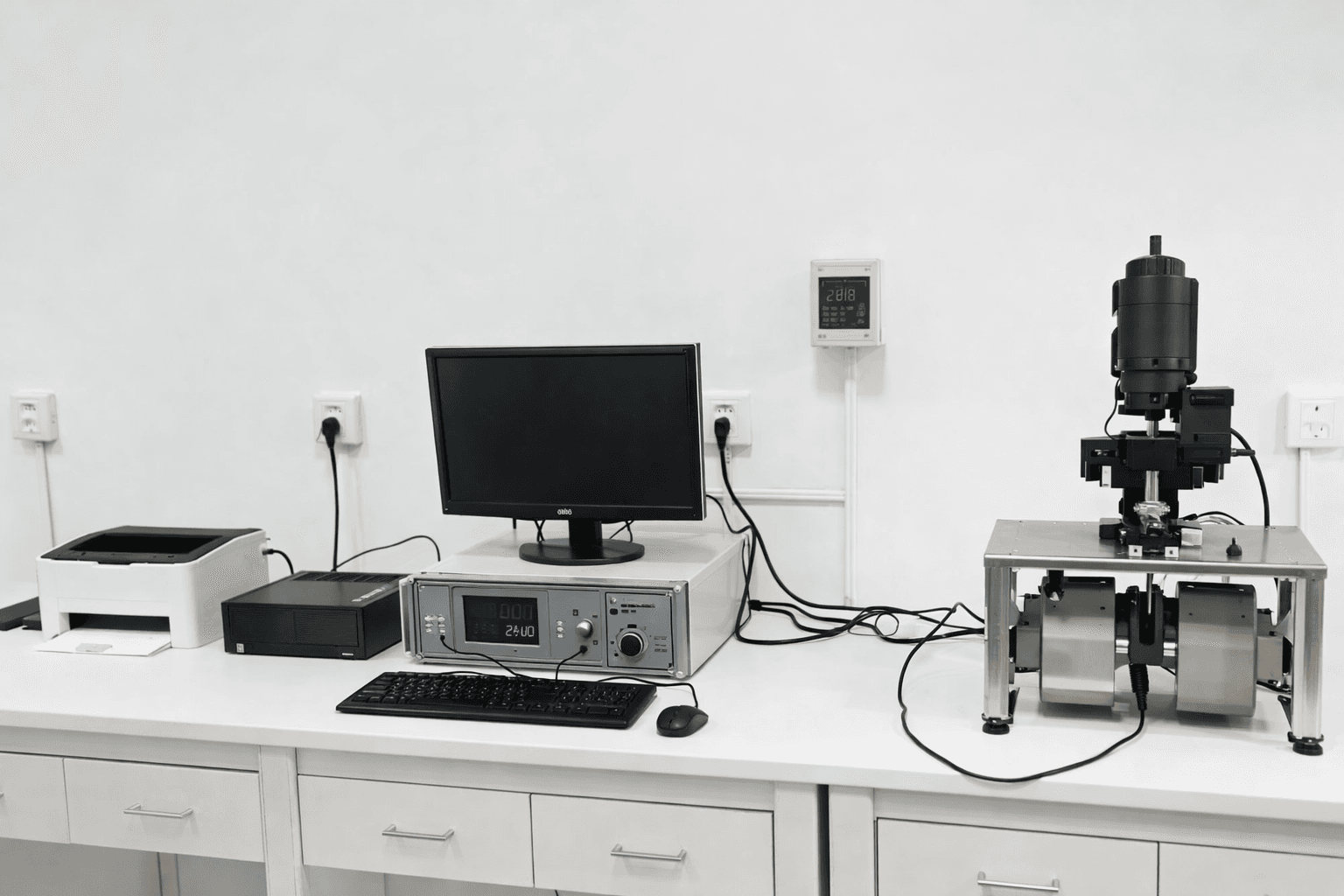

DXV-60 VSM Magnetometer for Teaching and Research
Vibrating Sample Magnetometer (VSM)
Educational and research-focused VSM platform tailored for academic laboratories and defence research applications.
Product Overview
DXV-60 VSM Magnetometer is a laboratory instrument designed for teaching and research applications to measure the magnetic properties of materials. The system operates using the vibrating sample magnetometer principle, where a sample is placed in a stable magnetic field and vibrated near a detection coil to produce a signal proportional to the magnetic moment.
The instrument provides high sensitivity, high accuracy and convenient operation, making it suitable for universities, research laboratories and materials science studies.
Key Features
- Accurate measurement of magnetic properties of materials
- High sensitivity detection of magnetic moment
- Suitable for powders, particles, films, liquids and bulk samples
- Automated measurement using computer-controlled system
- Capable of measuring magnetisation curves and hysteresis loops
- Ideal for teaching laboratories and academic research
Test Methods
Manual Measurement
In manual mode, the system is controlled using the instrument panel. Parameters such as modulation zero, phase shifting, time constant and sensitivity are adjusted manually.
Online Measurement
In online measurement mode, the system automatically locks the phase and controls parameters such as time constant, magnetic field strength, sensitivity and scan numbers via computer software. The system automatically records and displays magnetization curves, hysteresis loops and other magnetic parameters.
Main Functions
The DXV-60 VSM can measure fundamental magnetic characteristics including:
- Hysteresis loops
- Magnetisation curves
- Demagnetisation curves
- Warming and cooling magnetic curves
- Magnetic energy product curves
From these measurements, the system calculates magnetic parameters such as:
- Saturation magnetization
- Residual magnetization
- Coercive force
- Maximum magnetic energy product
- Curie temperature
- Magnetic permeability
Main Specifications
| Parameter | Specification |
|---|---|
| Magnetic Moment Range | 10⁻² emu – 300 emu |
| Sensitivity | 5 × 10⁻⁵ emu |
| Relative Accuracy | ±1% (at 30 emu) |
| Repeatability | ±1% |
| Stability | ±1% for 24 hours continuous operation |
| Magnetic Pole Gap | 45 mm |
| Pole Diameter | 60 mm |
System Components
| No | Component | Model / Description |
|---|---|---|
| 1 | Electromagnet | DXWD-60 |
| 2 | Vibrating Head | Vibration driver |
| 3 | Vibrating Frame | Mechanical structure |
| 4 | Vibrating Poles | Sample vibration poles |
| 5 | Sample Chamber | Measurement chamber |
| 6 | Control Cabinet | DXV-60 electronics cabinet |
| 7 | Detection Coils | Magnetic signal detection |
| 8 | Computer | Lenovo control computer |
| 9 | Instruction Manual | User documentation |
| 10 | Measurement Software | English software system |
Instrument Description
Electromagnet
The electromagnet is an adjustable double-yoke structure with a fixed air gap and 45° orientation. It provides a magnetic field up to 0.5 Tesla at the centre of the gap.
Power Supply
High stability DC power supply designed for electromagnet operation with adjustable current output and protection features including over-current and short-circuit protection.
Vibration System
The vibration system includes a vibrating head, vibration frame, sample chamber and detection coil to generate the magnetic signal during measurement.
Magnetic Measurement Unit
The measurement unit provides multiple magnetic moment ranges and magnetic field strengths with high resolution (0.1 mT) and measurement accuracy better than ±1%.
